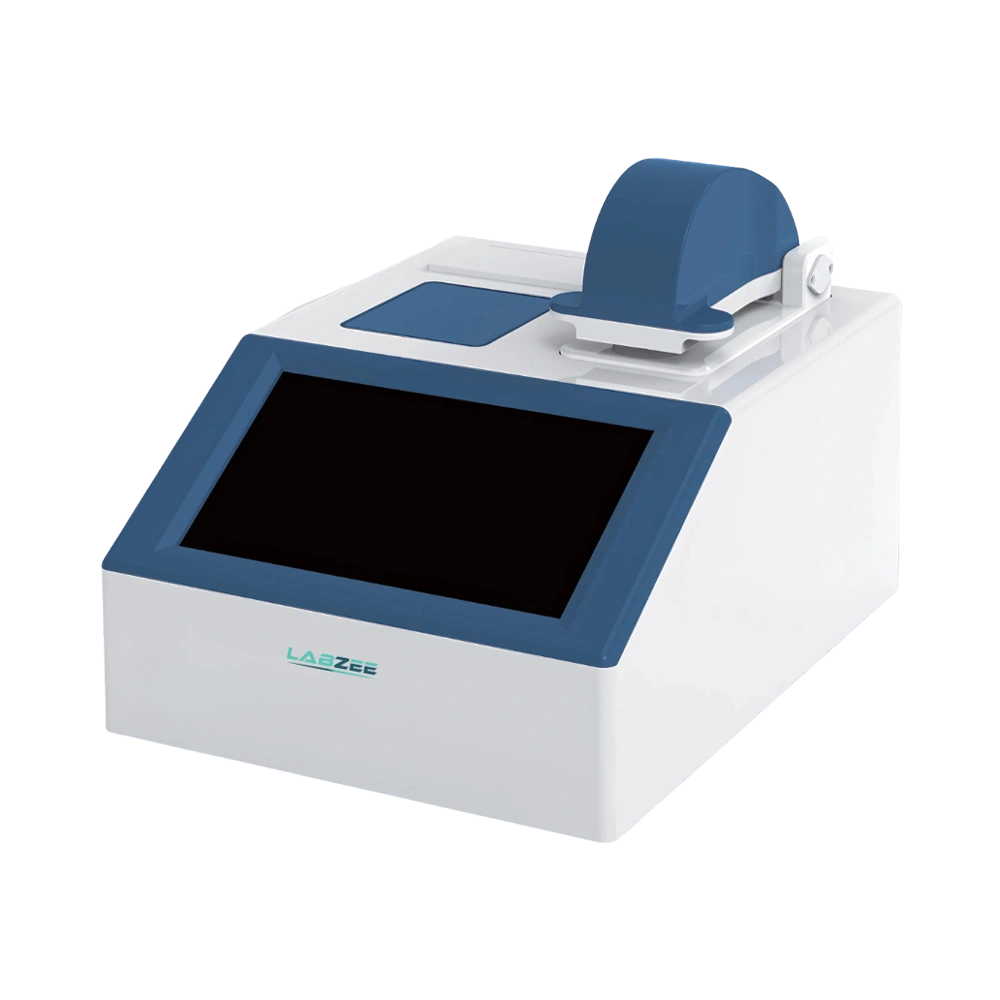

Micro-spectrophotometer BZPS-502 is an innovative variety of full-wavelength spectrophotometers used for sample detection. It has a built-in Bluetooth and Wi-Fi module that enables remote operation and wireless printing of results. It is made of stainless steel and quartz fiber. It has an optical path of 1/0.5/0.05 mm with a required operating wavelength range of 190 to 850 nm.
| Optical Path | 1/0.5/0.05 mm automatic conversion |
| Optical Range | 190 to 1100 nm |
| Sample Volume | 0.3 to 2.0 μl |
| Light Source | Long-life Xenon lamp |
| Detector | 3864 linear CCD array |
| Wavelength scanning Range | 190 to 850 nm |
| Wavelength Accuracy | ±1 nm |
| Wavelength Resolution | 2 nm (FWHM Hg 546 nm) |
| Absorbance Accuracy | 0.002 Abs |
| Absorbance Range | 1% (0.76 absorbances at 350 nm) |
| Nucleic acid Range | 0.002 to 300 Abs (equivalent to 10mm optical path) |
| Protein Range | 0.4 to 15000 ng/μl (ds-DNA) |
| Detection Time | 0.01 to 400 mg/ml (BSA) |
| Machine Size | less than 3s |
| Weight | 20×30×20 cm |
Applicable for detecting nucleic acid, protein, colloidal, and proteomic samples, as well as conventional full-wavelength scanning, among other things.
