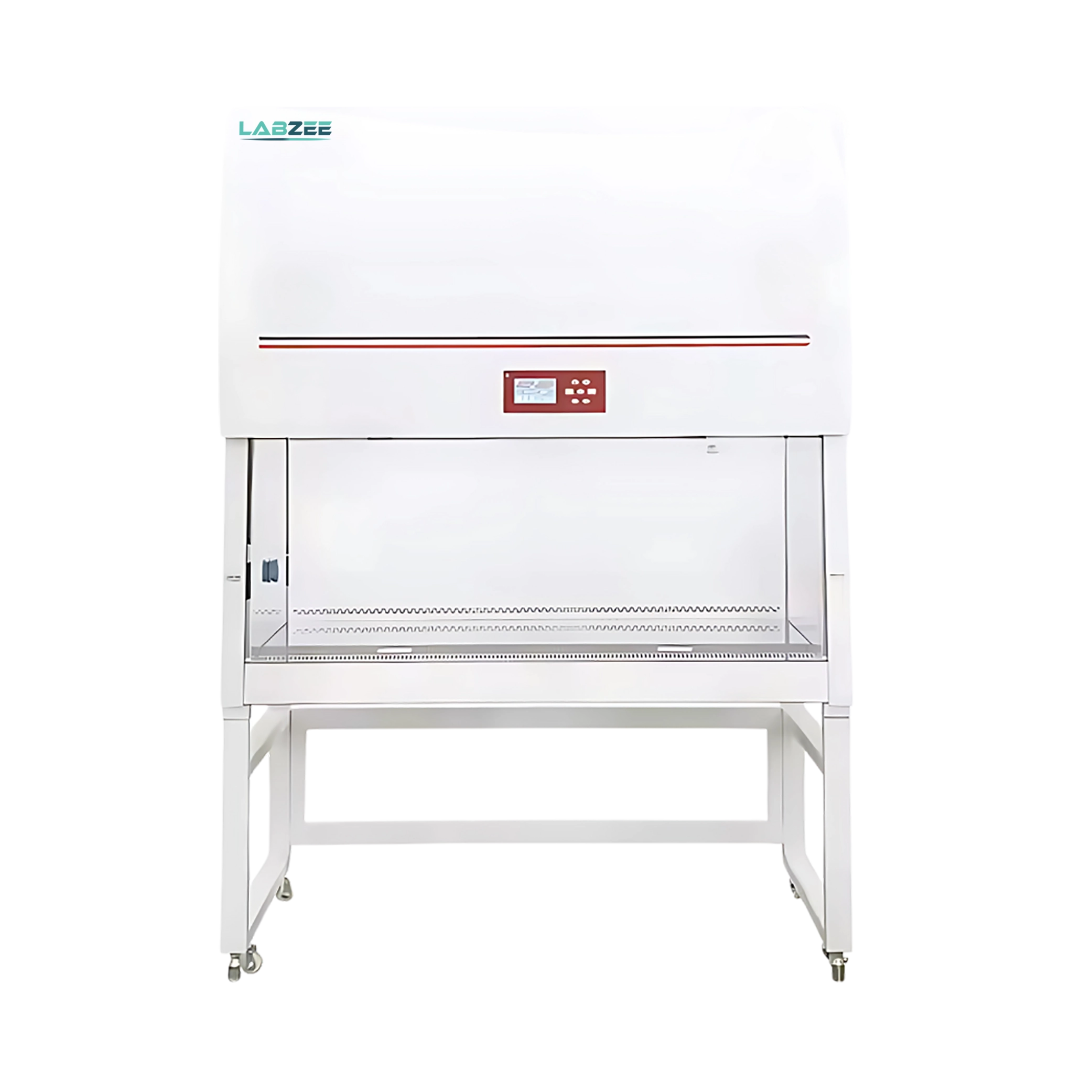

Biological Safety Cabinet BZBN-501 features an intelligent control system with a high-definition LCD display for real-time monitoring. It includes UV sterilization scheduling, constant wind speed technology, and HEPA filtration for contamination control. This device offers low-energy standby mode and front window limit protection enhances safety and efficiency. It has SUS304 stainless steel interior with a removable operating table to ensure durability and hygiene. Our Biological Safety Cabinet BZBN-501 with advanced airflow technology provides a sterile and controlled workspace for laboratory applications.
| Applicable Number Of Users | 1 |
| Cleanliness Class | 100 |
| Inflow Air Velocity | 0.55 m/s |
| Down Airflow Velocity | 0.35 m/s |
| Noise | ≤ 67 dB |
| Vibrational Half Peak Value | ≤ 5 µm |
| Illuminance | ≥ 650 Lux |
| Ambient Temperature | 10 to 30°C |
| Relative Humidity at 25°C | ≤ 70 % |
| Atmospheric Pressure | 80 to 105 Pa |
| Height of Rack | 630 mm |
| Power | 1100 W |
| Power Supply | 220 ± 10V, 50/60Hz |
| Power And Number Of Lamp | 20 W, 1 Piece |
| Power And Number Of UV Light | 20 W, 1 Piece |
| Net Weight | 174 Kg |
| Gross Weight | 205 Kg |
| Internal Dimension | 900 × 580 × 595 mm |
| Housing Dimension | 1040 × 770 × 2135 mm |
| Inflow HEPA Dimension | 935 × 475 × 70 mm |
| Exhaust HEPA Dimension | 450 × 420 × 90 mm |
| Packaging Dimension | 1300 × 970 × 1690 mm |
The Biological Safety Cabinet BZBN-501 can be used in microbiology, pharmaceuticals, and clinical laboratories for contamination-free handling of biological materials. It ensures safety in food testing, research, and diagnostics. With advanced filtration and airflow control, it provides a sterile and controlled workspace.
Frequently Asked Questions
1: What is the purpose of the Biological Safety Cabinet BZBN-501?
The BZBN-501 provides a sterile, contaminant-free workspace for handling sensitive biological materials. It ensures user, product, and environmental protection by using HEPA filtration and advanced airflow control.
2: What kind of filtration does the BZBN-501 use, and how effective is it?
The BZBN-501 uses an imported HEPA filter with 99.995% efficiency for 0.3 ?m particles (ISO Class 5). An optional ULPA filter with 99.9995% efficiency is also available for even stricter contamination control.
3: Is BZBN-501 energy-efficient for extended use in laboratories?
Yes, BZBN-501 features a low-energy standby mode that reduces power consumption during non-operational periods without compromising performance.
4: Is the interior of BZBN-501 easy to clean and maintain?
The interior of BZBN-501 is made of durable SUS304 stainless steel, with a removable brushed operating table, making it both hygienic and easy to clean.
5: Can I use external devices with the BZBN-501 cabinet?
Yes, our biosafety cabinet BZBN-501 has a standard anti-splash AC socket and reserved ports for air and water, making it compatible with additional lab equipment.
6: What is the main purpose of a biological safety cabinet?
A biological safety cabinet is designed to protect the user, the environment, and the samples from biohazardous or infectious agents through filtered airflow and containment.
7: What kind of filtration system does the cabinet use?
Most BSCs use HEPA filters (High-Efficiency Particulate Air) to trap 99.99% of particles ?0.3 microns.
8: Does the biological safety cabinet offer protection against cross-contamination between samples?
Yes, Class II and III BSCs are designed to minimize cross-contamination with uniform laminar airflow and front barrier protection.
