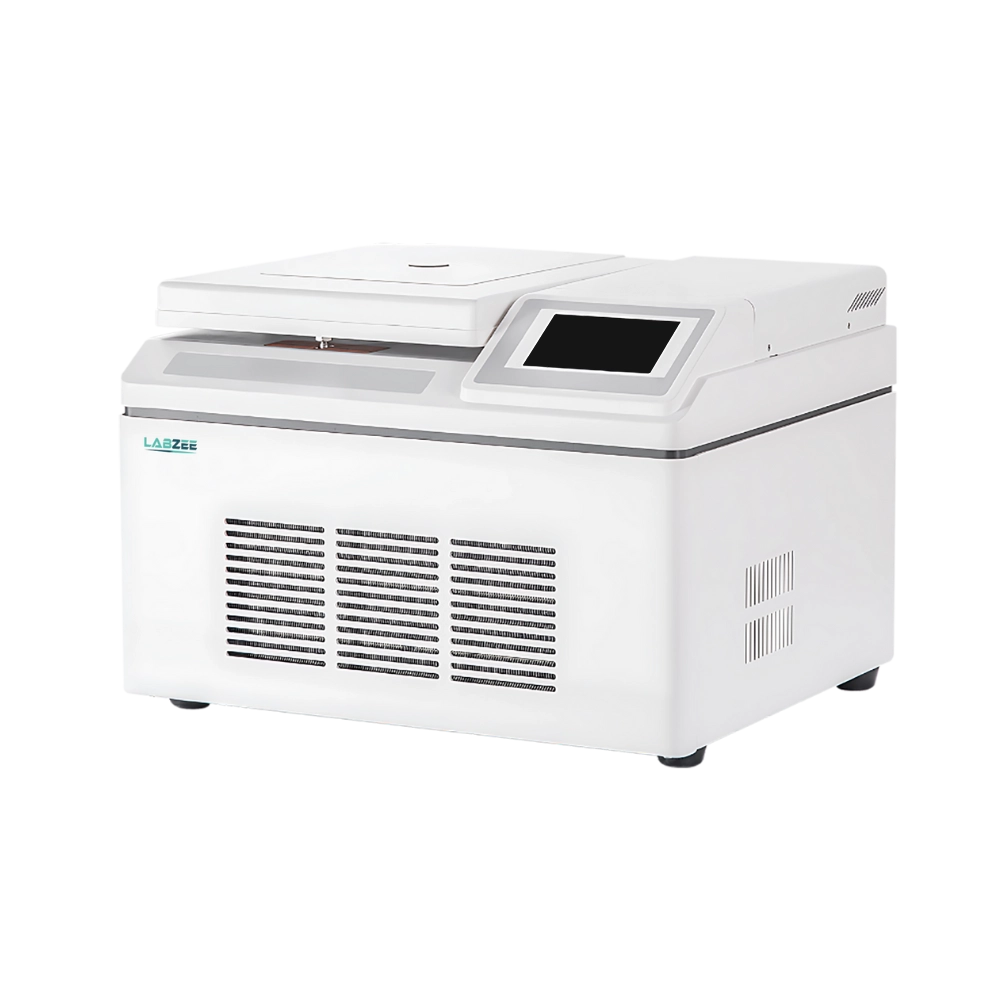

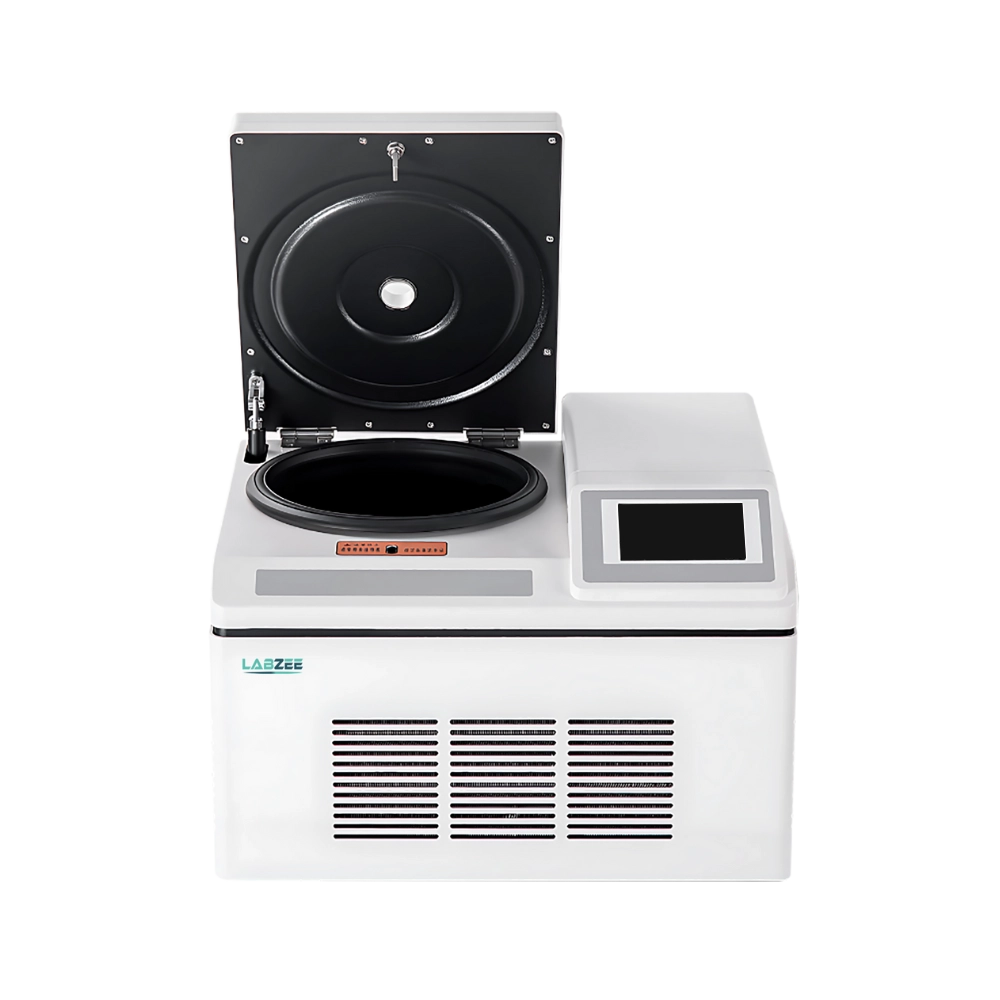

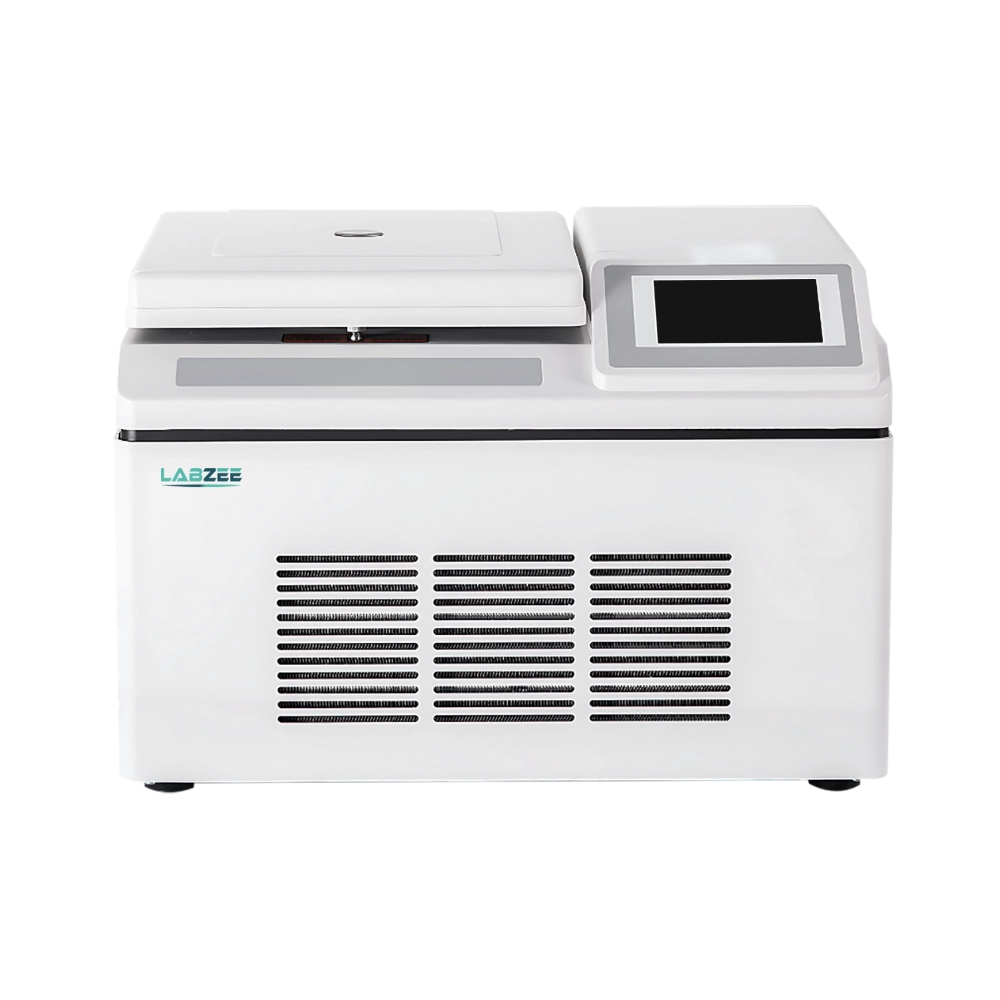

Benchtop High-Speed Refrigerated Centrifuge BZBH-503

Benchtop High-Speed Refrigerated Centrifuge BZBH-503 It is designed for reliability and consistent results, and it has a digital display to monitor the parameters. A microcontroller-controlled system with a high torque brushless motor system, a centrifugation capacity of 12×10 ml, a spin speed of 16000 rpm, and a temperature-adjustable frequency of up to 1 °C. The relative centrifugal field of 17660 g. It has a dynamic compressor control system.

Maximum Capacity 12×10 ml
Speed Range 16000 rpm
Relative Centrifugal Field (RCF ×g) 17660×g
Standard Rotor 12×1.5/2.0 ml
Temperature Accuracy ±1 °C
Speed Adjustment ±50 rpm
Maximum Operation 20 set
Compressor System R404a
Noise ≤65dB (A)
Time Period 1 to 99 h 59 min
Temperature -20 °C to +40 °C
Voltage AC 220 V 50 Hz
Total Power 1.5 KW
Dimensions(W× D ×H )mm 710×630×350 mm
Net Weight 73 kg
Display TFT LCD
  • It is having with a wide temperature control range, can be fixed during the operation of the centrifuge with a pre-cooling function
  • It is having with an alert system that gives an early sign for the over-temperature, over speed, balance controlling, under pressure, overpressure. The three-step damping and shock absorption
  • The warning system can control the fluctuations so which makes the motor run safely and reliably, processes the comfortable centrifuge effect
  • It displays the speed rise curve, centrifugal integral curve, temperature curve
  • The angle rotor is fitted with a silicon rubber integral seal to avoid the damage and safety of the staff laboratory environment
  • Aviation copied aluminum rotor and variety of adapters available can centrifuge various MTP microplate, PCR, and cell plates
  • The high torque brushless motor system to ensure the steady and reliable operation, low noise, maintains a comfortable Laboratory environment
  • With stand by cooling function, it can quickly cool down and set temperature value
  • It is set with 304 stainless steel centrifugal chamber, whole steel casing and one-piece strapped steel for front face, three layered steel protective cover to secure the safety measures of workers, and Laboratory
  • The display is TFT true color LCD, and it can show setting the parameters and operating the parameters same time, simple and easy to use
  • It has an operational menu that can display the multiple languages
  • It has the capacity of storing 20 sets of user-defined programs
  • It is designed with diamond shape and looks beautiful and saves the labs space occupancy

Used for bacterial protein precipitation, nucleic acid extraction, and cell component separation. Used in the tissue culturing process as well as RNA and DNA research. Used to separate and concentrate samples according to their densities

RotorNameCapacityRPMRCF×g
AngleRotor0112×1.5/2.0ml1600017700
AngleRotor0210×5ml1300011700
AngleRotor0324×1.5/2.0ml1400018180
AngleRotor0412×10ml/5ml1200013400
