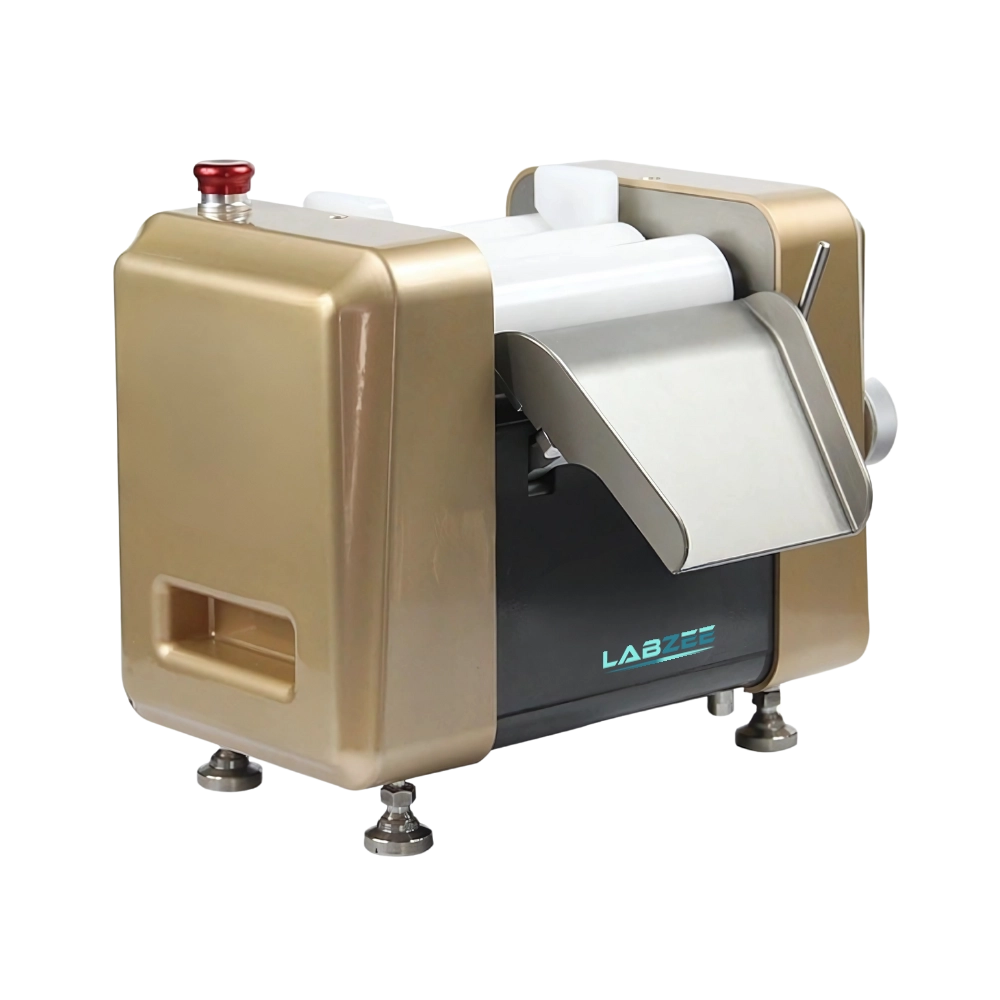

Triple Roller Mill BZTRM-501 is a high-performance wet grinding and dispersion tool designed for processing high-viscosity materials. It features zirconium rollers that provide excellent shearing and grinding through progressive speed differentials. The roller gap is manually adjustable for precise control and consistent particle size distribution. It’s simple, reliable design ensures clean discharge with minimal residue, making it easy to clean and ideal for quick product changes. Our Triple Roller Mill BZTRM-501 delivers exceptional grinding fineness and high efficiency with no dead corners.
| Roller Material | Zirconia |
| Roller Specification | φ50mm / W150mm |
| Roller Precision | ≤2μm |
| Roller Distance | 1–140μm |
| Roll Rotating Speed | 400 rpm |
| Speed Ratio | 1:2:4 |
| Spacing Adjustment | Handwheel Adjustment |
| Product Output | 0.02L–5L/h |
| Control Panel | Human Computer Interaction Interface |
| Safety Protection | Equipped With Emergency Stop Protection and Abnormal Load Alarm Protection |
| Motor Type | DC Motor |
| Power Consumption | 120W |
| Power Supply | 220V / 50Hz |
| Product Dimension | 340 × 190 × 260 mm |
| Net Weight | 20Kg |
| Gross Weight | 50Kg |
The Triple Roller Mill BZTRM-501 is best suited for laboratory and industrial applications involving the fine grinding and dispersion of materials such as pastes, creams, or ointments. Commonly used in pharmaceutical formulation, cosmetic labs, ink production, and advanced material research, it ensures high efficiency with minimal contamination.
Frequently Asked Questions
1: Can you operate a Triple Roller Mill manually or is automation required?
Triple Roller Mills are available in both manual and automated forms. Manual models are suitable for smaller batches and test labs, while automated versions provide better consistency, speed, and ease of use in industrial settings.
2: How can you safely clean the rollers of a Triple Roller Mill?
To safely clean a Triple Roller Mill, you should power down the machine, disassemble or tilt the rollers if the model allows, and use compatible cleaning solvents or wipes. Proper cleaning ensures there’s no cross-contamination between different batches or formulations.
3: Can you use a Triple Roller Mill for temperature-sensitive materials?
Yes, you can process temperature-sensitive materials in a Triple Roller Mill, but you must monitor heat buildup during operation. Some models include water-cooled rollers to keep processing temperatures within safe limits for delicate substances.
4: How can you maintain consistent output with a Triple Roller Mill?
To maintain consistency, carefully calibrate roller gaps, control feed rates, and ensure even material distribution. Regular maintenance and cleaning of the Triple Roller Mill are also critical to ensure optimal and uniform results.
5: Can you integrate a Triple Roller Mill into an existing production line?
Yes, a Triple Roller Mill can be integrated into an existing production workflow. It’s often used as a secondary step after mixing, where it refines and homogenizes the product before packaging or further processing.
6: Can you explain what a Triple Roller Mill is used for?
A Triple Roller Mill is designed to grind, refine, and disperse high-viscosity materials such as ointments, printing inks, cosmetics, and pigments. It utilizes three rollers rotating at different speeds to shear and mix the material, resulting in a uniformly processed output.
7: How can you use a Triple Roller Mill for pharmaceutical formulations?
In pharmaceuticals, a Triple Roller Mill is often used to create smooth, homogenous ointments and creams by evenly dispersing active ingredients and excipients. Its precise gap adjustment ensures the uniform particle size critical for effective topical medications.
8: What kind of materials can you process in a Triple Roller Mill?
You can use a Triple Roller Mill to process a variety of semi-solid and high-viscosity materials, including inks, lubricants, waxes, pigments, cosmetics, and pharmaceuticals. It is particularly useful for dispersing and grinding substances to fine consistencies.
9: Can you adjust the roller spacing on a Triple Roller Mill?
Yes, the roller spacing on a Triple Roller Mill is fully adjustable, allowing you to control the shear force and particle size of the processed material. This adjustability helps achieve specific texture and consistency requirements.
10: What benefits can you expect from using a Triple Roller Mill in a lab?
Using a Triple Roller Mill in a lab setting allows for precise control over particle size and product texture. It ensures repeatable dispersion, making it ideal for R&D work in pharmaceuticals, cosmetics, and specialty chemicals.
