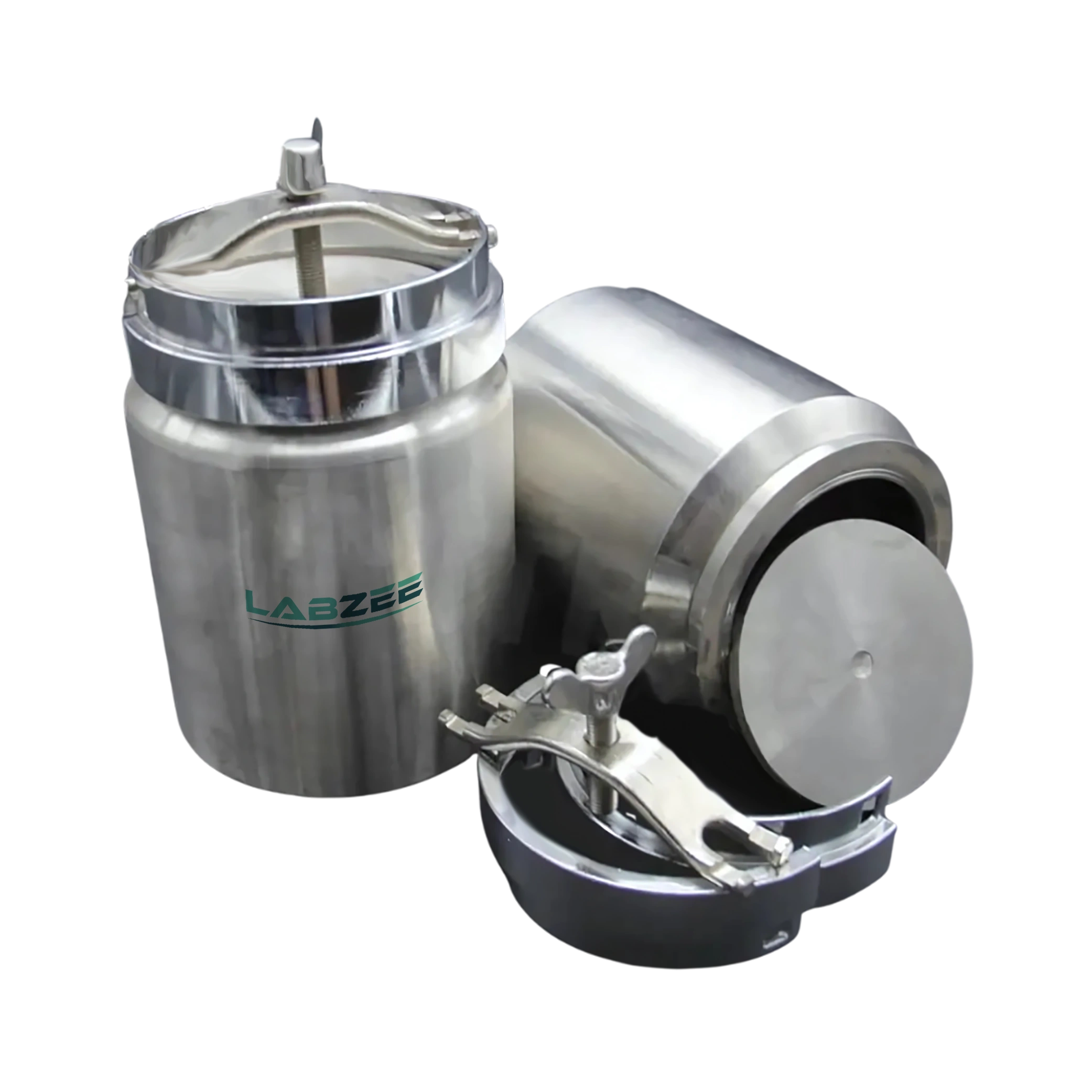

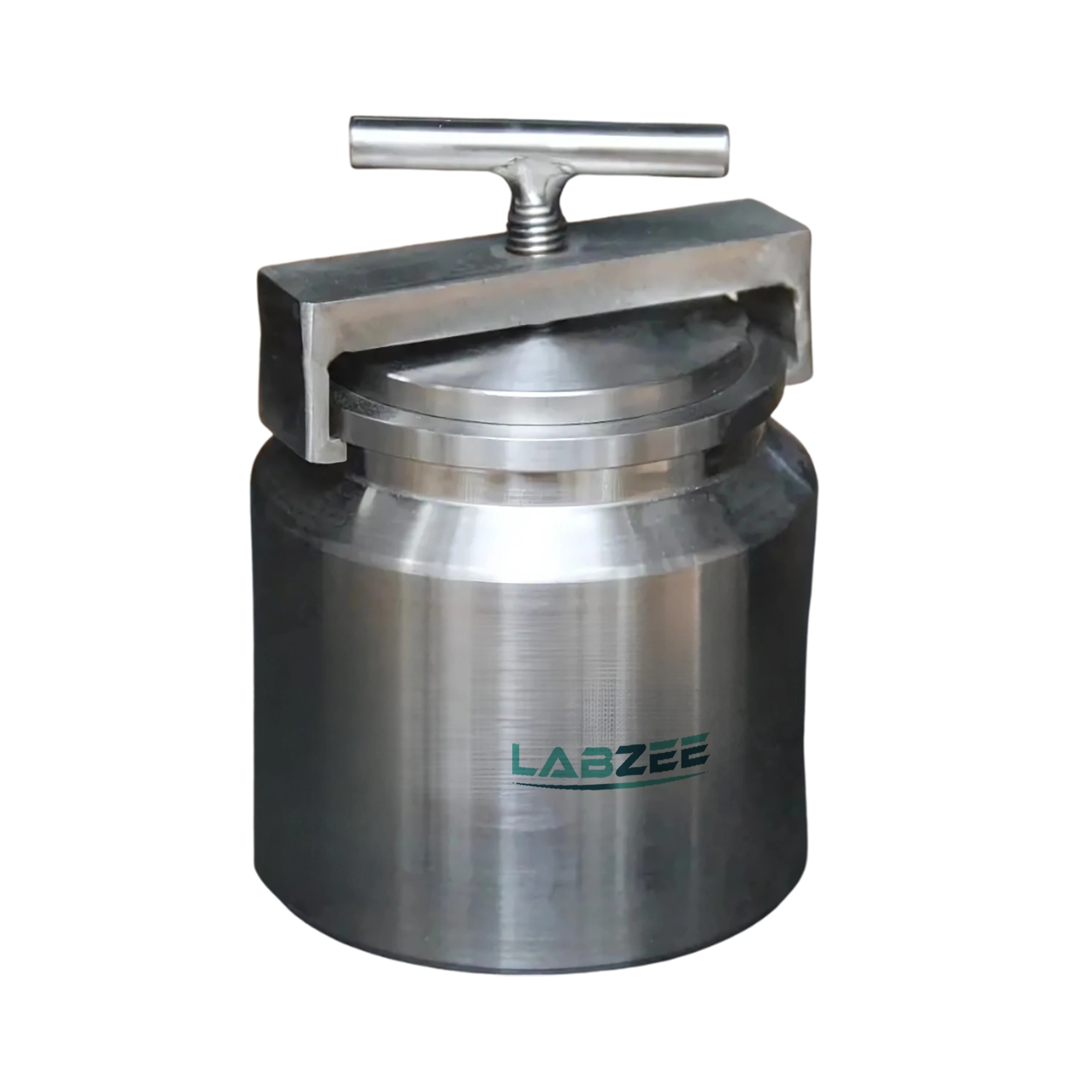

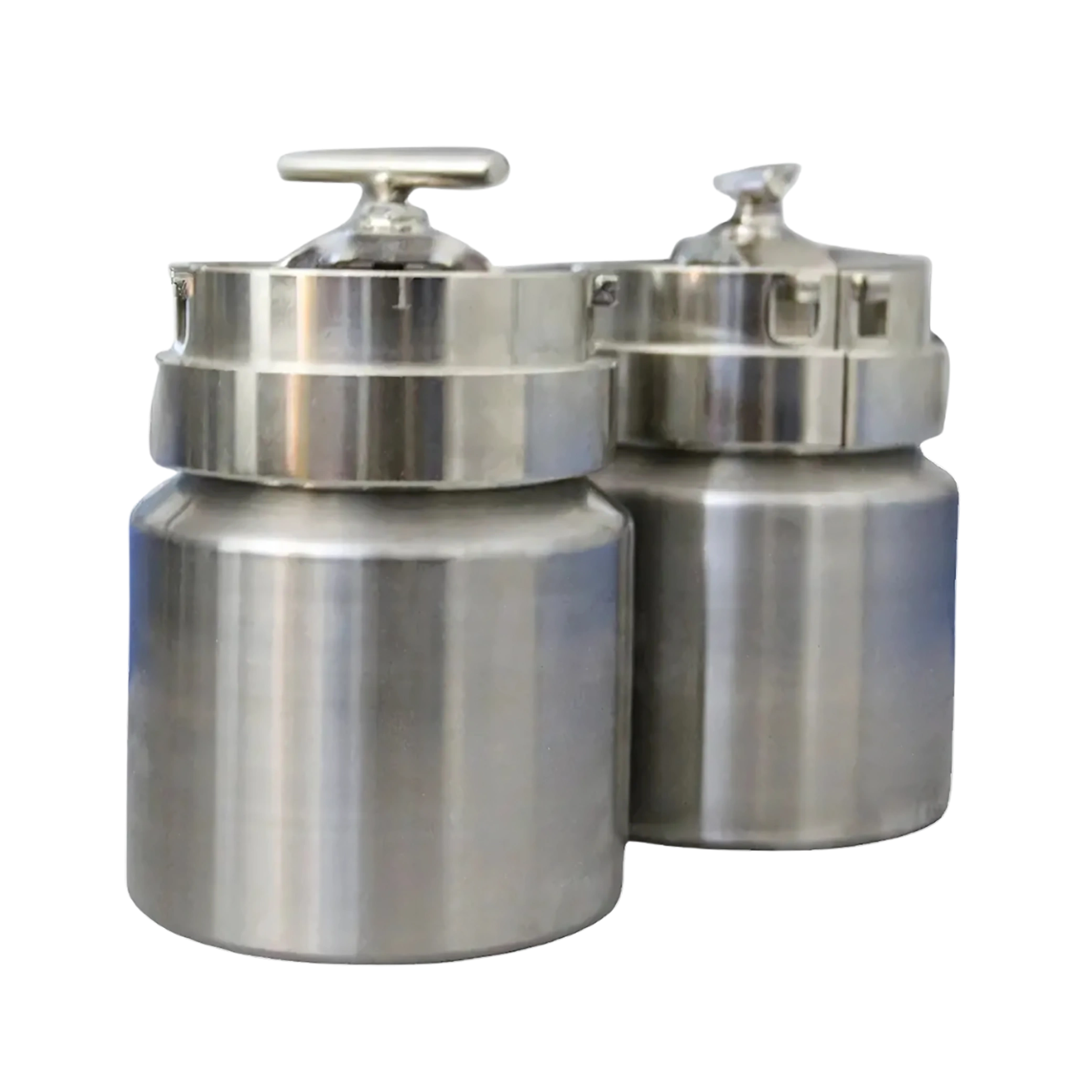

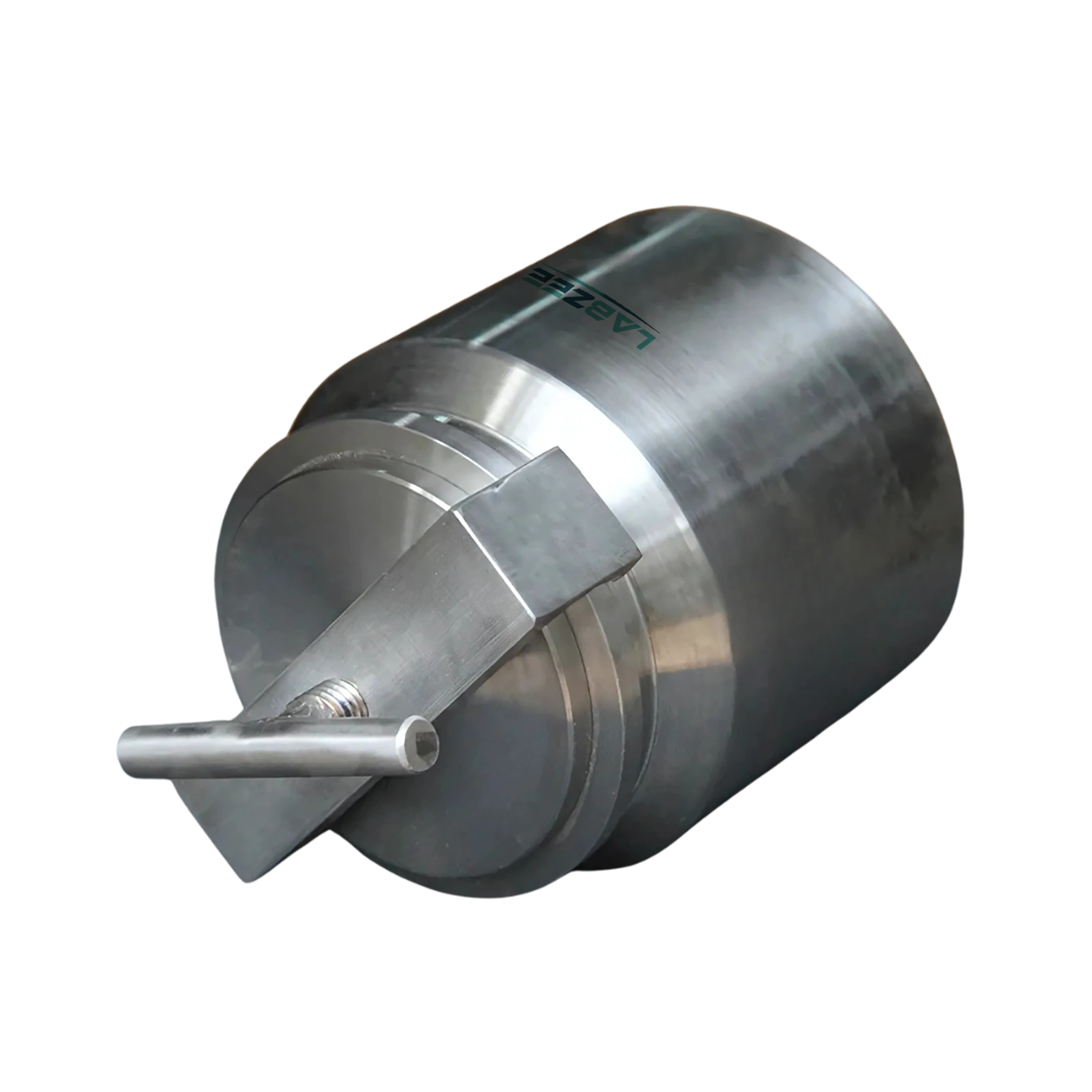

Horizontal Stainless-Steel Ball Mill Jar BZHSJ-507 is a large-capacity, heavy-duty milling jar built for precision grinding and blending of hard, dense materials. This Ball Mill Jar features a wall thickness of 7.5 mm and a cover thickness of 15 mm, delivering excellent durability and operational stability during high-energy grinding. It is constructed from high-quality stainless steel, offering corrosion resistance and long-term performance under demanding conditions. Its horizontal design ensures uniform energy distribution for consistent particle size reduction. Our Horizontal Stainless-Steel Ball Mill Jar BZHSJ-507 is ideal for large-batch alloy processing, abrasive material grinding, and advanced composite formulation.
$1,617.00
| Volume | 15 L |
| Height | 278 mm |
| Wall Thickness | 7.5 mm |
| Cover Thickness | 15 mm |
| Internal Diameter | 265 mm |
| External Diameter | 280 mm |
| Bottom Diameter | 280 mm |
| Cover Weight | 5.156 Kg |
| Grinding Jar Weight | 24.640 Kg |
Our Horizontal Stainless-Steel Ball Mill Jar BZHSJ-507 is perfect for mechanical alloying, mixing ceramic abrasives, grinding metal powders, and processing high-density materials in metallurgical, composite, and material development applications.
Frequently Asked Questions
1: What does the capacity of the Horizontal Stainless-Steel Ball Mill Jar BZHSJ-507?
The BZHSJ-507 has a 15 L capacity, designed for processing large quantities of abrasive and dense materials.
2: Can you use BZHSJ-507 for mechanical alloying?
Yes, its heavy-duty stainless-steel construction and even energy transfer make it ideal for mechanical alloying and high-impact material blending.
3: Is BZHSJ-507 suitable for high-density powders?
Absolutely, the strong build and spacious interior make it perfect for grinding high-density and metal-based powders.
4: How does the horizontal design enhance performance in BZHSJ-507?
The horizontal layout ensures balanced motion of grinding media, leading to consistent energy application and uniform milling.
5: What are common industrial applications for BZHSJ-507?
BZHSJ-507 is widely used for alloy powder processing, ceramic slurry preparation, abrasive compound grinding, and composite material blending.
6: When should a Horizontal Stainless-Steel Ball Mill Jar be used?
This jar is ideal when high mechanical strength and resistance to impact or corrosion are required. It's commonly used for alloying, powder mixing, and grinding hard materials.
7: Can it be used for both wet and dry grinding applications?
Yes, the stainless-steel jar supports both wet and dry milling processes. Its leak-proof design makes it suitable for solvent-based or aqueous grinding without risk of spillage.
8: Is the material of the jar safe for sensitive samples?
Stainless steel minimizes contamination and is safe for many samples, although it is not recommended for applications requiring non-metallic or ultra-pure environments.
9: What precautions are needed for long-term usage?
Avoid corrosive agents incompatible with steel, regularly inspect for dents or weld stress, and ensure the sealing mechanism is intact for safe milling.
10: How should the Horizontal Stainless-Steel Ball Mill Jar be cleaned?
It can be cleaned using standard lab detergents, ultrasonic baths, or solvents. Avoid abrasive pads that may damage the polished inner surface.
