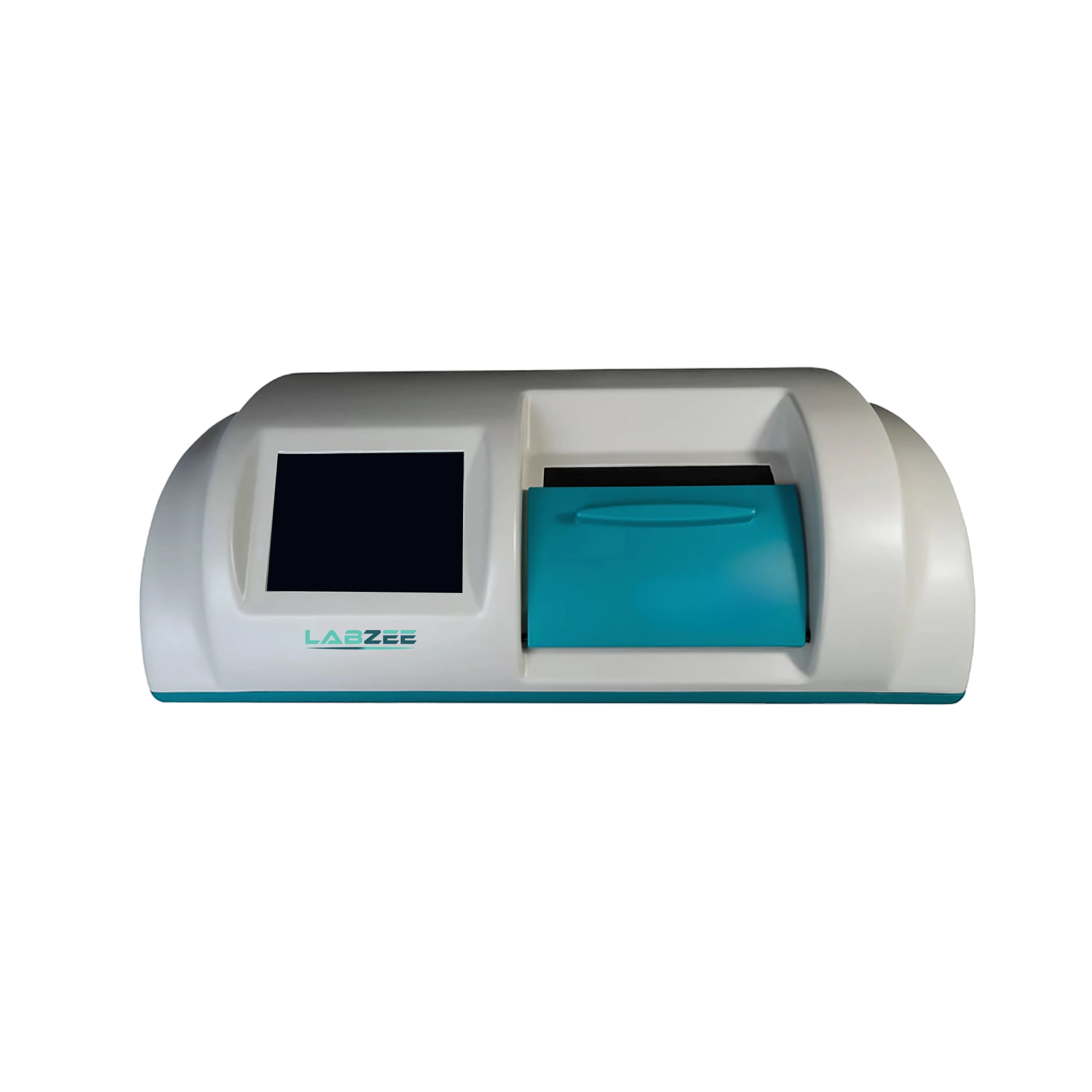

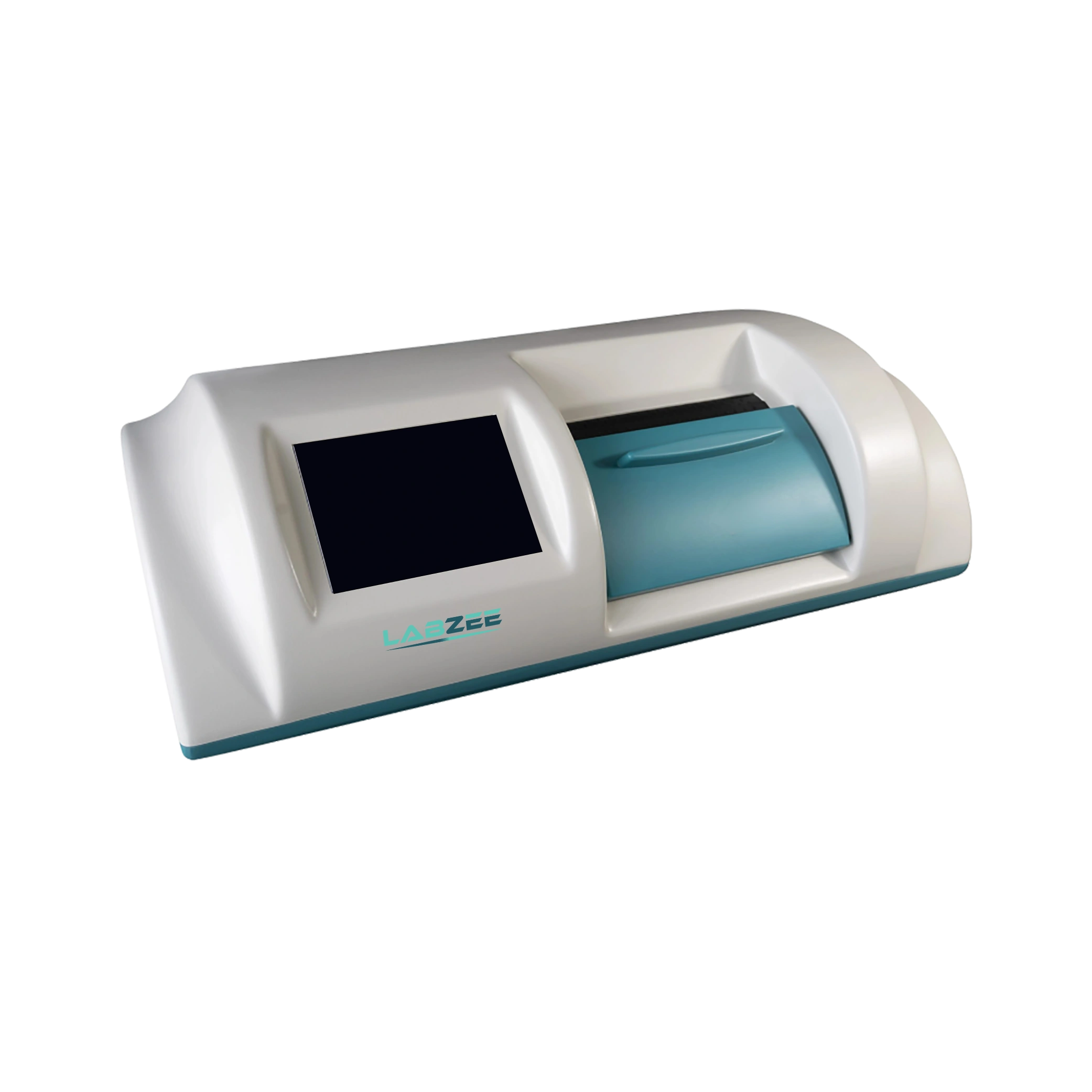

Automatic Polarimeter BZPM-506 standard FD Version for general use and the professional FD+ Version for large laboratories. It offers high precision with a ±90° measuring range ensuring reliable results. This device includes Peltier-based temperature control that maintains a 10 to 50°C range for stable sample conditions. It features advanced data management that includes password protection, an audit trail for 100,000 groups, and multiple data formats. Our Automatic Polarimeter BZPM-506 offers 8-inch touch-screen LCD, RS232 & USB connectivity, multi-user access and online/database printing for streamline workflow efficiency.
$12,177.00
| Measuring Range | ± 90° |
| Resolution | 0.001° |
| Accuracy | ± 0.001° |
| Repeatability | ± 0.003° |
| Temperature Range | 0 to 100°C |
| Temperature Resolution | 0.1°C |
| Temperature Control Model | Peltier |
| Temperature Control Range | 10 to 50°C |
| Temperature Control Accuracy | ± 0.2°C |
| Sensitivity | Minimum 0.5% |
| Prism | Polymer |
| Light Source | LED, 100000 hours |
| Wavelength | 589 nm |
| Measuring Mode | 200, editable |
| Sample Chamber | Up to 200 mm |
| Interface | RS232, USB |
| Display | 8 Inch touch screen, color LCD |
| Number Of Users | 50 |
| User Level | 4 |
| Data Processing | PW protection |
| PW Reminder | Yes |
| Discarded Method Database | 1000 Groups data |
| Filtered Measurement Database | 100000 Groups data |
| Discarded Measurement Database | 10000 Groups data |
| Audit Trial Database | 100000 Groups data |
| Data Format | PDF, Excel, MD5 verify |
| On-Line Printing | Yes |
| Database Printing | Yes |
| Net Weight | 30 Kg |
| Gross Weight | 33 Kg |
| Product Dimension | 72 × 37 × 24 cm (instrument), 25 × 16 × 14 cm (printer) |
| Packing Dimension | 88 × 59 × 42 cm (instrument), 39 × 22 × 22 cm (printer) |
| Configuration | Polarimeter, Printer, 200mm × 1 (glass tube), 100mm × 1 (temperature-controlled metal tube), Syringe, Brush, Data transfer safety SW, Power cord |
• Quartz Plate (Single Plate)
• Glass Tube 200mm for General Use
• Glass Tube 100mm for General Use
• Glass Tube 50mm for General Use
• Glass Tube 200mm for Sampling Through Funnel
• Glass Tube 100mm for Sampling Through Funnel
• Glass Tube 200mm for Water Bath
• Glass Tube 50mm for Small Sample
• Micro-Flow Through Tube 50mm (Stainless Steel)
• Micro-Flow Through Tube 10mm (Stainless Steel)
• Special Tube with Hose Connectors (Stainless Steel)
• Printer
• Plain Paper
• Sampling Assistant
• Mini Dryer
• Barcode Reader
• Polarimeter Peltier Consumable Set
• Digi Link SW Package
• Quartz Plate with NTC Sensor
• Peltier 200mm Set (Stainless Steel)
• Peltier 200mm Set (Anti-Corrosion)
• Peltier 100mm Set (Stainless Steel)
• Peltier 100mm Set (Anti-Corrosion)
• Peltier 50mm Set (Stainless Steel)
• Peltier 50mm Set (Anti-Corrosion)
• Temperature Sensor
The Automatic Polarimeter BZPM-506 can be used in pharmaceuticals for purity analysis, food and beverages for sugar concentration measurement, and chemical research for chiral compound analysis. It also aids in biotechnology studies and essential oil authentication.
Frequently Asked Questions
1: What are the key differences between the FD and FD+ versions of the BZPM-506?
The FD version is designed for general laboratory use, while the FD+ version is tailored for high-throughput, professional labs. Both offer the same high precision and performance, but the FD+ includes enhanced data handling and workflow features suitable for larger teams and regulated environments.
2: What temperature control capabilities does this polarimeter offer?
The Peltier-based system provides precise temperature control from 10°C to 50°C with ±0.2°C accuracy, ensuring consistent sample conditions for highly sensitive measurements.
3: What connectivity and data export options are available?
The BZPM-506 supports RS232 and USB interfaces for seamless integration. It allows online and database printing, and stores up to 100,000 filtered measurement records, with support for PDF and Excel exports and MD5 data verification for secure sharing.
4: What is the maximum sample tube length supported?
The instrument supports sample tubes of up to 200 mm in length, enabling the analysis of both standard and large-volume samples. The configuration includes a 200 mm glass tube and a 100 mm temperature-controlled metal tube.
5: How user-friendly is the BZPM-506 for multi-operator environments?
The device supports up to 50 individual users, each with customizable access levels across 4 user tiers, making it ideal for shared laboratory environments. Password reminders and protection ensure secure operation.
6: How accurate are your polarimeters?
Our models offer high accuracy, typically ranging from ±0.01° to ±0.002° optical rotation, depending on the model. Contact us for detailed specifications.
7: Is temperature control important in polarimetry?
Yes. Optical rotation is temperature-sensitive, so maintaining a constant temperature (often 20°C or 25°C) using Peltier elements or a water bath ensures accurate and repeatable results.
8: How do you calibrate an automatic polarimeter?
Calibration is usually done using certified quartz control plates or standard solutions with known optical rotation values. Many modern polarimeters also have built-in auto-calibration functions.
