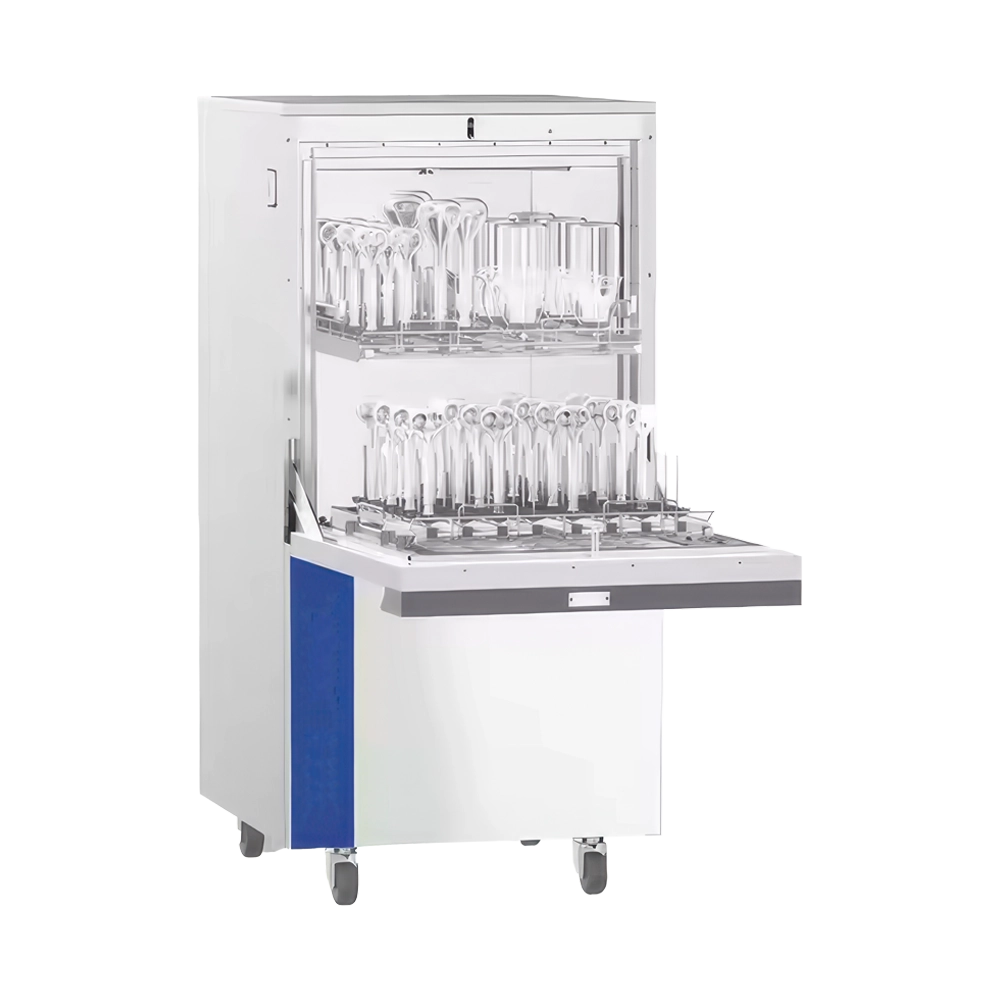

Laboratory Glassware Washer BZGW-504 features microcomputer chip control technology and a 7-inch full-color OLED LCD touch screen for easy operation. It offers standard cleaning procedures and customizable programs, allowing users to adjust key parameters for optimal cleaning. This device contains dual circulation pump with a variable frequency soft-start function to prevent glassware damage by regulating water pressure. Its dual parallel water supply system ensures uniform pressure across cleaning baskets and spray outlets for consistent performance. Our Laboratory Glassware Washer BZGW-504 provides a reliable and high-performance cleaning solution for various laboratory glassware needs.
| Chamber Material | 316 stainless steel |
| Shell Material | 304 stainless steel |
| Pipe Material | 316 stainless steel + pharmaceutical silicone |
| Chamber Volume | 223L |
| Screen Size | 7 Inch |
| Heating Power | 4 kW |
| Standard Program | 30 |
| Self-Defined Program | 120 |
| Pump Flow | 0-600L/Min. |
| Peristaltic Pump | 2 |
| Air Volume | 110m3/h |
| Drying System | Injection drying |
| Air Heating Power | 3kW |
| Black Box System | Yes |
| Basket Design | FL-EXCH module |
| Cleaning Basket Layer | Two layers |
| Intelligent Switch Door | Yes |
| 3 Level Permission | Yes |
| Pipeline Pressure Monitoring | Yes |
| SD Card Store System | Yes |
| Printer | RS232 interface |
| Power Supply | 220V, 50Hz |
| Internal Dimension | 546 × 573 × 726 mm |
| External Dimension | 670 × 760 × 1400 mm |
• Upper Cleaning Basket, Without Spray Arm
• Upper Cleaning Basket, With Spray Arm
• Lower Cleaning Basket, Without Spray Arm
• Upper/Middle Cleaning Basket, Without Spray Arm
• Lower Cleaning Basket with Spray Arm
• Upper Cleaning Basket, With Spray Arm, Place K 03 Module
• Lower Cleaning basket, Without Spray Arm, Place 03 Module
• Spray Basket 8 for 250 to 2000ml Bottles & Flasks
• Spray Basket 21 for 50 to 250ml Bottles & Flasks
• Spray Basket 32 for 50 to 250ml Bottles & Flasks
• Spray Basket 50 for 10 to 100ml Bottles & Flasks
• Spray Basket 66 for 10 to 50ml Bottles & Flasks
• Sample Bottle Basket 25 for 500ml Bottles
• Sample Bottle Basket 20 for 1000ml Bottles
• Sample Bottle Basket 21 for 50 to 250ml Flasks
• Sample Bottle Basket 32 for 50 to 250ml Flasks
• Sample Bottle Basket 66 for 10 to 50ml Flasks
• Spray Bottle Basket 66 for 10 to 20ml Test Tube
• Spray Bottle Basket 66 for 10 to 50ml Pipettes
• Sample Bottle Basket 50 for 10 to 100ml Flasks
• Spray Bottle Basket 150 for 2ml chromatographic injection bottles
• Spray Bottle Basket 102 for chromatographic injection bottles
• Spray Bottle Basket 102 for test tubes and centrifuge tubes
• Spray Bottle Basket 102 for pipettes and graduated pipettes
• Hybrid Module 102 for 78 injection bottles and 24 pipettes (0.1 to 50ml)
• Hybrid Module 102 for 78 injection bottles and 24 pipettes (0.1 to 50ml)
• Hybrid Module 102 for 54 injection bottles and 48 pipettes (0.1 to 50ml)
• Hybrid Module 102 for 54 injection bottles and 48 test tubes (0.1 to 50ml)
• Hybrid Module 102 for 78 test tubes and 24 pipettes (0.1 to 50ml)
• Hybrid Module 102 for 54 test tubes and 48 pipettes (0.1 to 50ml)
• Hybrid Module 48 for 24 pipettes and volumetric flasks (1 to 100ml)
• Hybrid Module 48 for 24 injection bottles and volumetric flasks (0.1 to 100ml)
• Hybrid Module 74 for 50 injection bottles and 24 volumetric flasks (2 to 100ml)
• Hybrid Module 74 for 50 pipettes and 24 volumetric flasks (2 to 100ml)
• 1/2 Cleaning Frame Module for cleaning jars, glass rods, and bottle caps (10 to 2000ml)
• 1/4 Fan-shaped Frame with Spring for cleaning test tubes (10 to 20ml)
• 1/4 Fan-shaped Frame for test tubes, centrifuge tubes, etc. (10 to 20ml)
• Cleaning Frame Module for jars, glass rods, and bottle caps (10 to 2000ml)
• 1/2 Cleaning Frame Module 30 for petri dishes (60 to 150mm)
• Water inlet pipes × 2 Pieces
• Drainpipe × 1 Piece
• Spare parts (sealing strips, peristaltic pump pipes)
The Laboratory Glassware Washer BZGW-504 is ideal for pharmaceutical, biotechnology, and chemical laboratories, life sciences, industrial research, ensuring thorough cleaning and preventing cross-contamination. Additionally, it supports environmental research, academic institutions and food safety labs.
