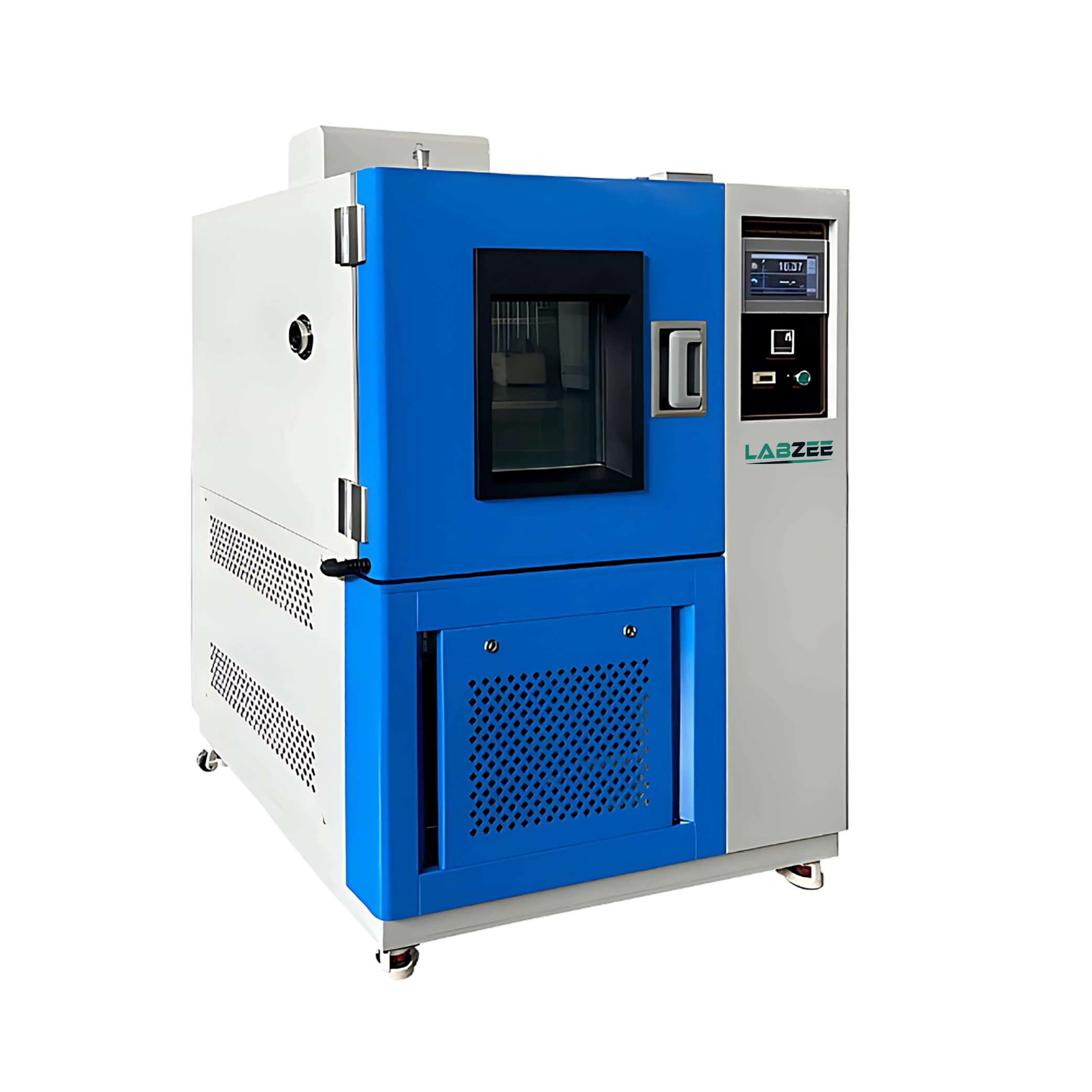

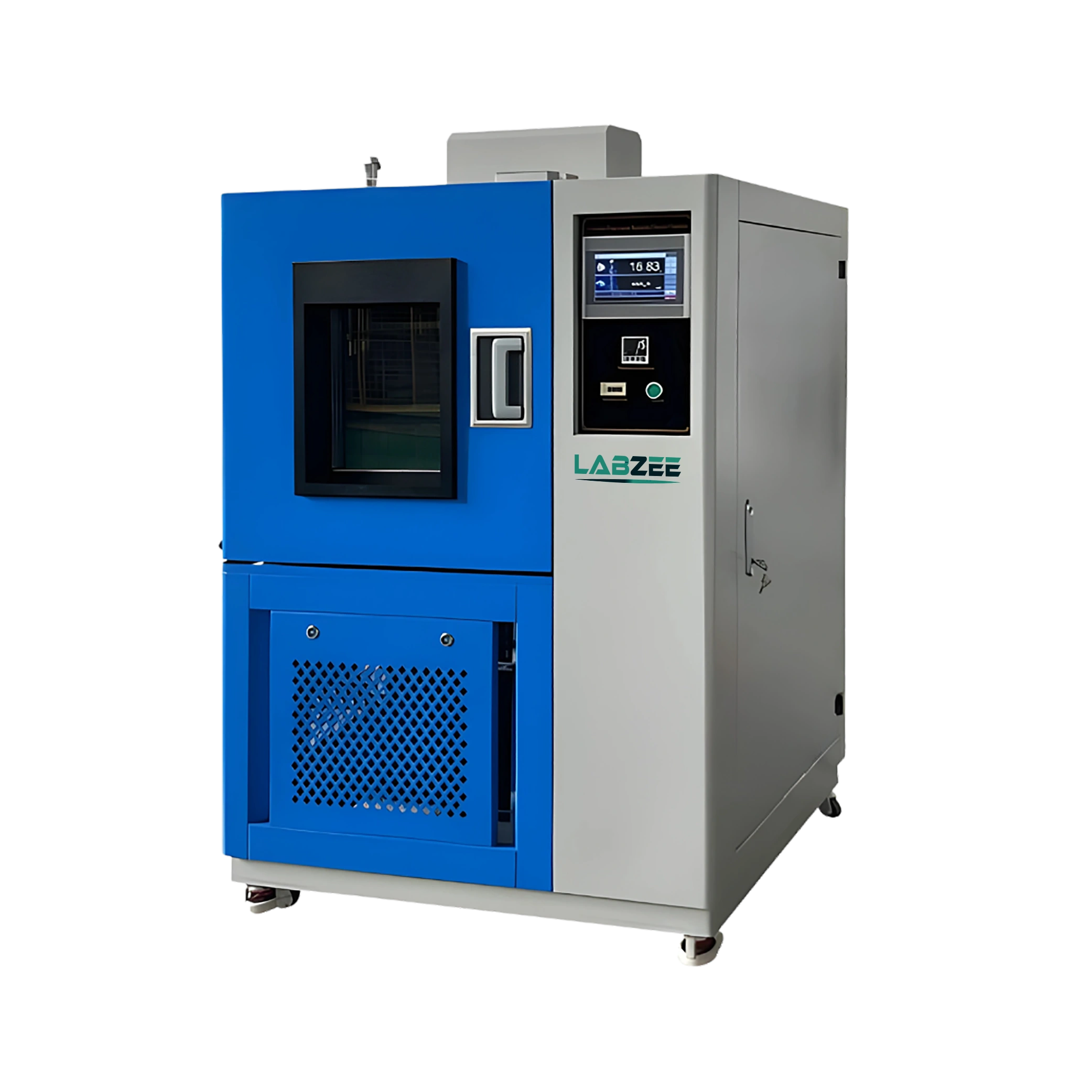

Environmental Climatic Chamber BZLT-503 is designed for precise environmental testing from -70°C to +150°C. It offers fast heating and cooling rates for efficient performance. This device is equipped with durable stainless steel and insulation materials ensuring its stability and long-term use. It has timer settings and multi-cycle operation which enhance testing flexibility. Our Environmental Climatic Chamber BZLT-503 is ideal for testing the resistance of materials and electronic products to heat, cold and dryness.
| Capacity | 150 L |
| Temperature Range | -70°C to +150°C |
| Temperature Fluctuation | ≤±0.5°C |
| Temperature Uniformity | ≤2°C |
| Heating Rate | 2 to 3°C/min |
| Cooling Rate | 0.7 to 1°C/min |
| Timing | 1S to 9999H |
| Heater | Nickel Wire Heater |
| Power Supply | AC220V·50HZ/380V·50HZ |
| Refrigerant | R404A / R23 |
| External Material | A3 Steel Plate, Surface Electrostatic Spraying |
| Internal Material | High Quality SUS304 Stainless Steel Plate |
| Insulation Materials | Superfine Fiberglass Wool / Polyurethane Foam |
| Internal Dimension W×D×H (mm) | 500×500×600 |
| External Dimension W×D×H (mm) | 1050×1100×1850 |
| Net Weight | 350 Kg |
| Gross Weight | 410 Kg |
The Environmental Climatic Chamber BZLT-503 is used to tests the performance of electrical, electronic products and materials under varying temperature conditions. It is ideal for evaluating resistance to heat, cold, and dryness.
