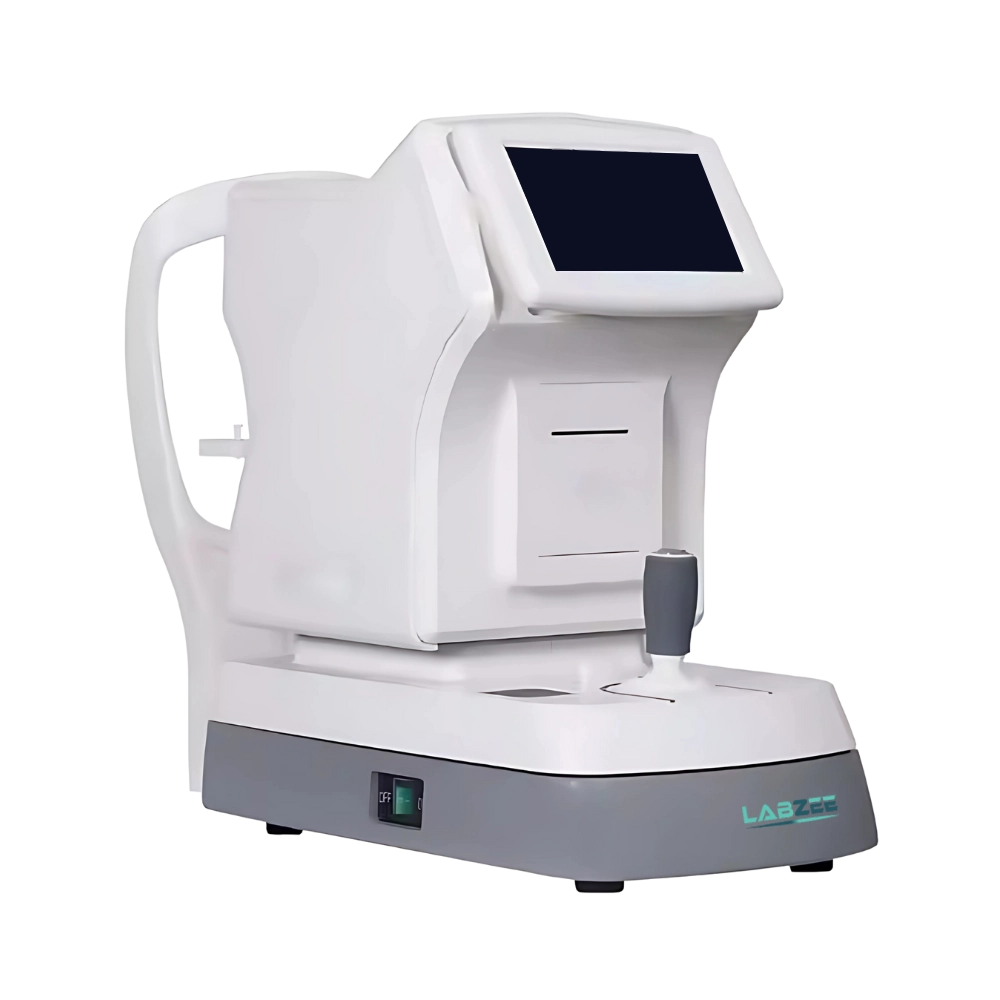

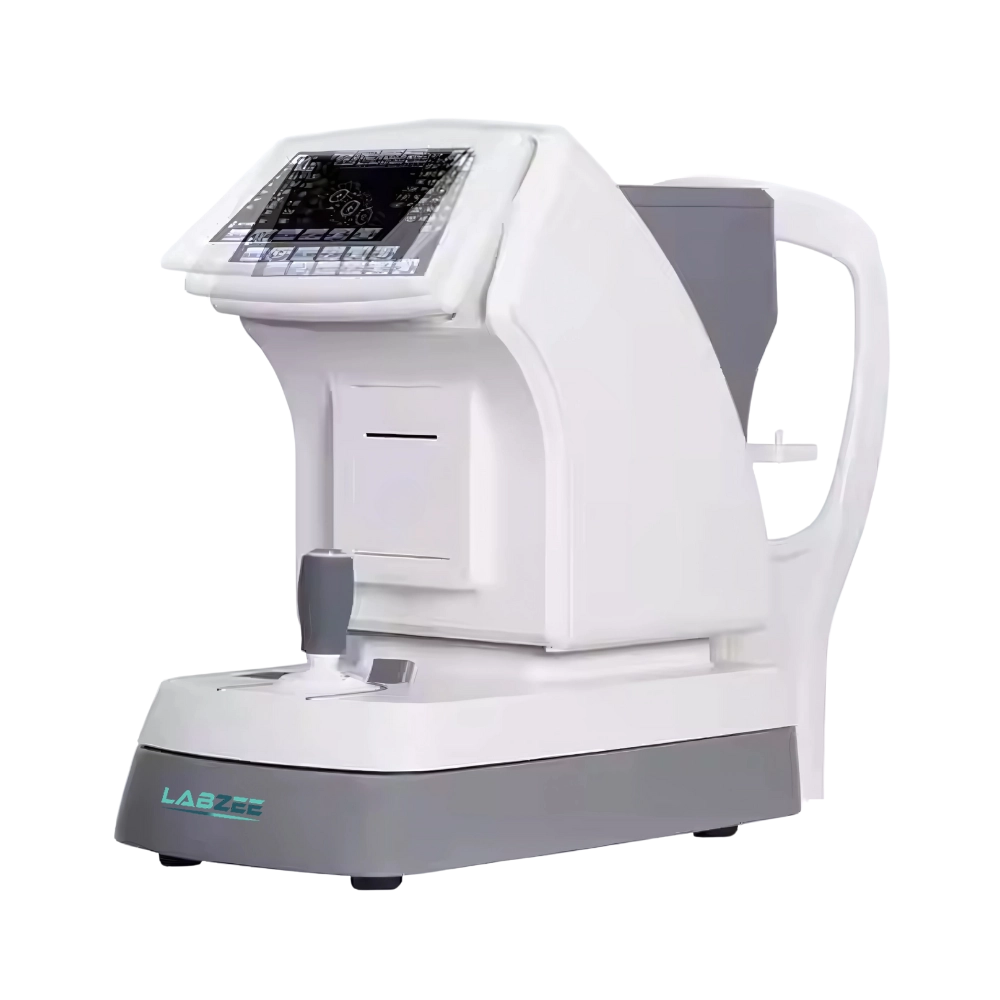

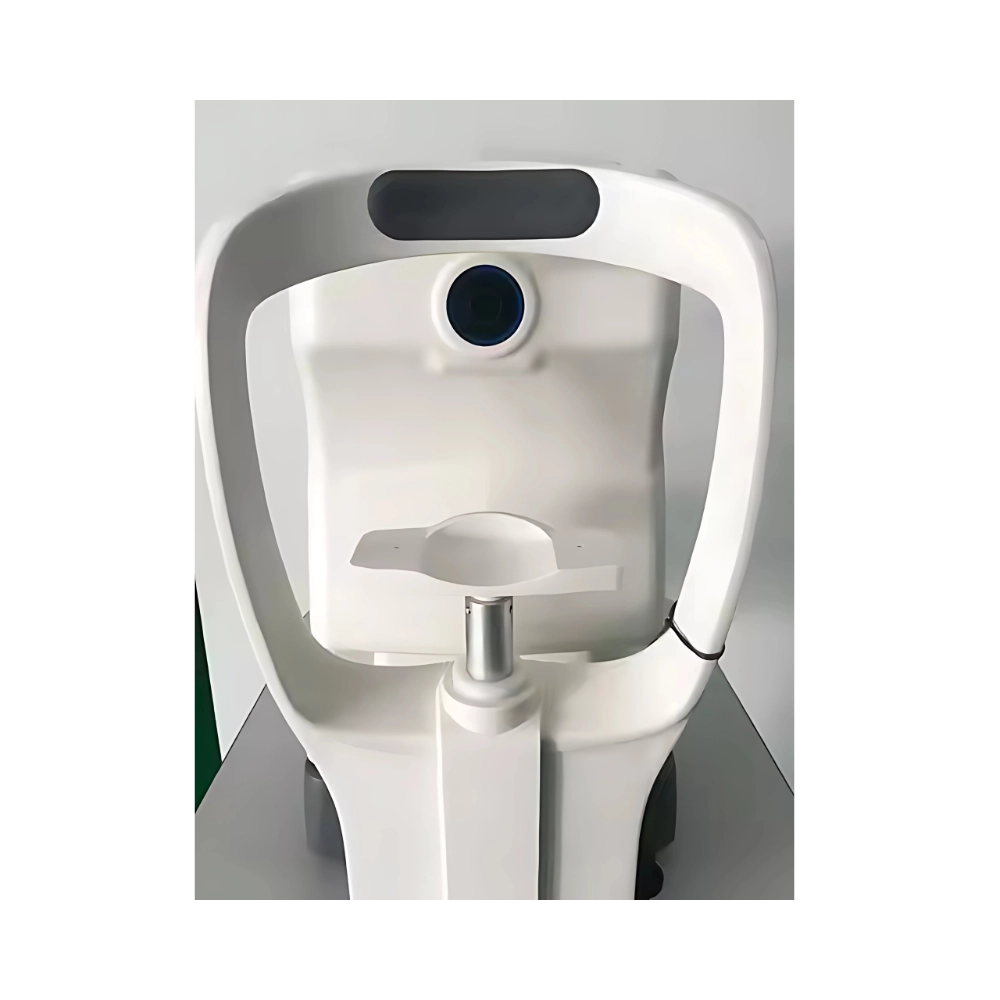

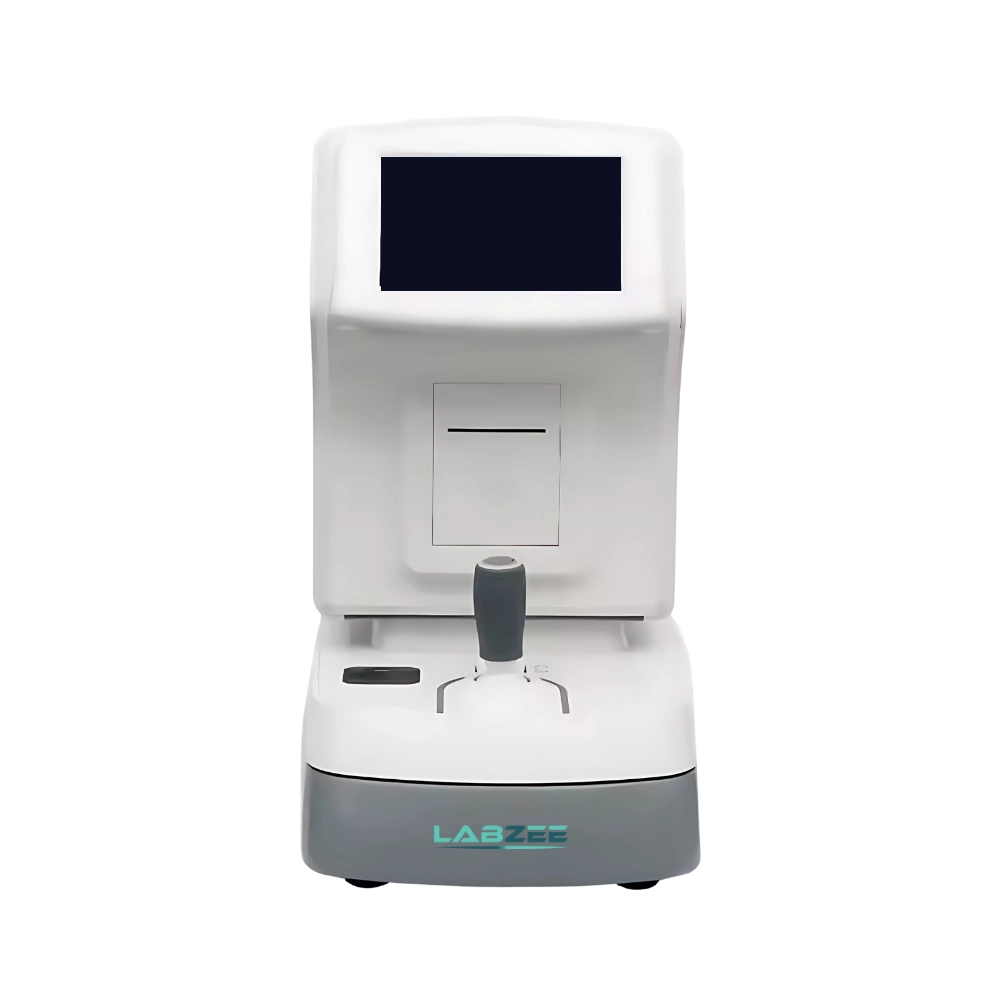

Auto Refractometer BZAR-532 is a new optical system that delivers high-precision imaging with advanced Hartman analysis technology. It features a 7” adjustable TFT touch screen that ensures user-friendly operation. This device includes an auto tracking and focusing which enhances measurement accuracy and efficiency. It includes motorized chinrest providing comfort and stability during examination and built-in thermal printer for efficient data recording. Our Auto Refractometer BZAR-532 with its fast measurement speed and a wide range of parameters makes it ideal for comprehensive eye assessments.
| Vertex Distance | 0.0, 12.0, 13.75, 15.0 |
| SPH | ‐30D to +25D (VD = 12 mm, 0.01, 0.06, 0.12, 0.25 unit) |
| CYL | 0.00D to +/‐10D (0.12, 0.25 unit) |
| Axis | 1º to 180º (1º unit) |
| Cylinder Form | -, +, ± |
| Pupil Distance | 10 to 86 mm |
| Pupil Diameter | 2.00 to 8.00 mm |
| Minimum Pupil Diameter | 2.0 mm |
| Measuring Time | < 0.5s |
| Measuring Light Energy | < 30 uw (insure measuring safety) |
| Radius Of Curvature | 5.0 to 10.0 mm (0.01 mm unit) |
| Corneal Power | 33D to 67D (in case that the corneal equivalent refractive power is 1.3375) |
| Corneal Astigmatism | 0.00D to -15D (0.06D/0.12D/0.25D unit) |
| Data Storing | Each 10 measured values of left eyes and right eyes |
| Chart | Auto fog |
| Monitor | SHARP 7’’ TFT LCD touch screen (angle of view adjustable) |
| Built–in Printer | 57 mm thermal printer, auto paper cutting |
| Power Supply | AC 100 - 250V, 50/60HZ |
| Packaging Dimension | 680 × 400 × 640 mm |
| Net Weight | 22 Kg |
| Gross Weight | 26.5 Kg |
The Auto Refractometer BZAR-532 can be used in optical clinics and eye hospitals for accurate vision assessments. It is essential in optical stores and retail centers for quick and precise prescription determination. It also supports research institutions, corporate vision screenings, and mobile eye camps, making eye care more accessible.
