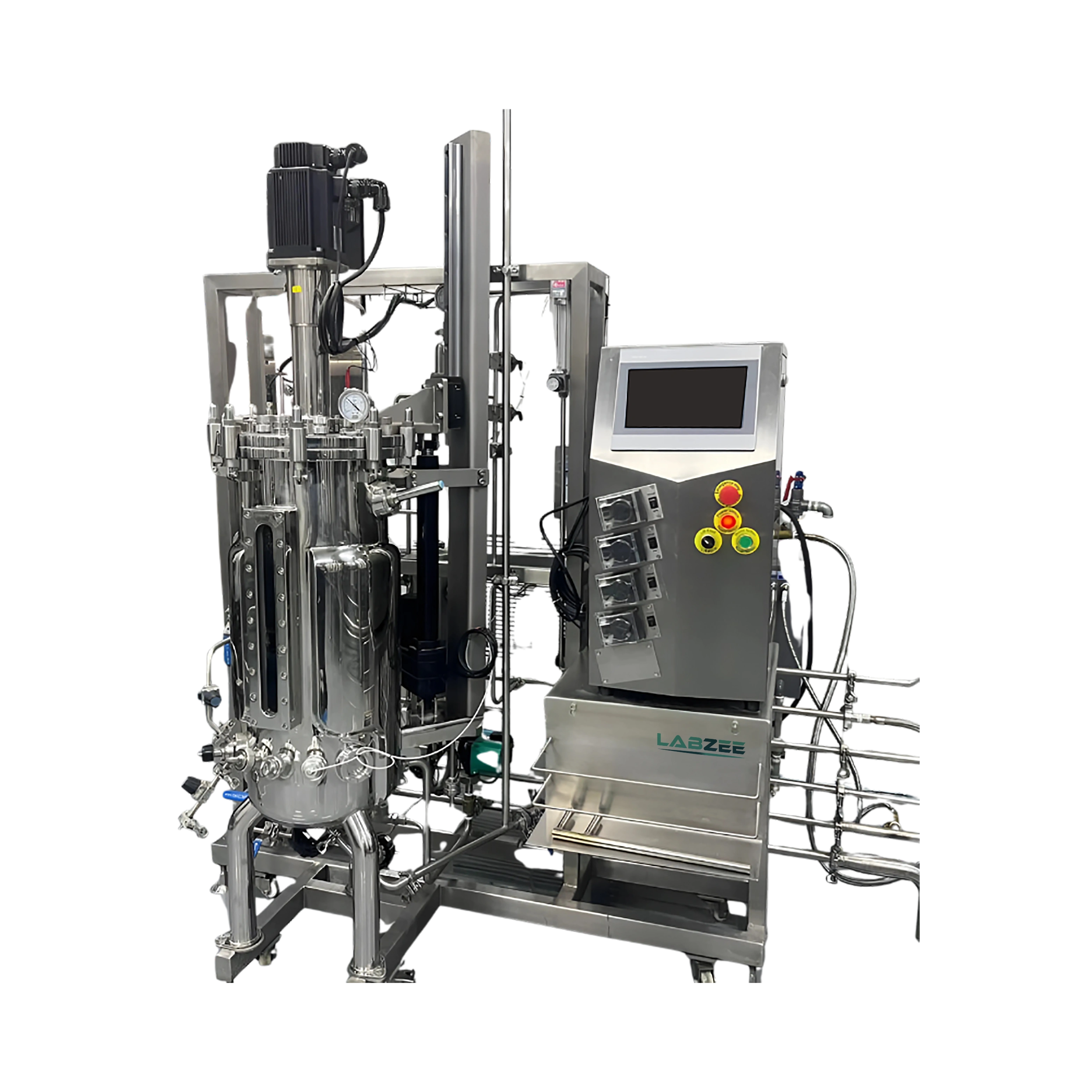

Labzee Stainless Steel Bioreactor BZLB-515 is a 10000L industrial-grade fermenter designed for continuous large-scale bioproduction and GMP-aligned operations. The Stainless Steel Bioreactor BZLB-515 offers a high-volume tank, programmable agitation, and SCADA compatibility for complete automation. It is constructed for precision control and clean-in-place operation across multi-batch or continuous runs. Our Stainless Steel Bioreactor BZLB-515 is ideal for vaccine production, biosimilar development, and commercial biomanufacturing.
| Volume | 10000L |
| Stir Speed | 50 to 1000rpm |
| Stirring Mechanism | Mechanical Agitation with Top-Drive Motor |
| PH Range | 2.00 to 12.00 ±0.1 |
| DO Range | 0 to 150% ±3% |
| Power Supply | AC 220V, 50Hz |
| Package Size (W×D×H) | 470 cm × 320 cm × 500 cm |
| Net Weight | 3900 Kg |
| Gross Weight | 4700 Kg |
Remote Control Computer with Software
OD Sensor
Biomass Sensor
CO2 Sensor
ORP Sensor
Glucose Online Analyzer
Valves & Pipes
Manual Gas Control System
Agitation Control System
Ph Sensor
DO Sensor
Temperature Sensor
Foam Sensor
10" Touch Screen
Peristaltic Pumps × 4 Pieces
Labzee Stainless Steel Bioreactor BZLB-515 is ideal for biologics production, GMP vaccine processing, and upstream continuous manufacturing in regulated pharmaceutical environments.
Frequently Asked Questions
1: What is the vessel volume of the Stainless Steel Bioreactor BZLB-515?
It has a working capacity of 10,000L suitable for full-scale bioproduction.
2: Is the agitation customizable in the Stainless Steel Bioreactor BZLB-515?
Yes, it supports programmable RPM between 50 and 1000 for various cell types.
3: Is the system SCADA-ready?
The Stainless Steel Bioreactor BZLB-515 includes SCADA connectivity and remote automation support.
4: Can it run continuous or fed-batch processes?
Yes, it supports batch, fed-batch, and continuous fermentation workflows.
5: Does the system support GMP documentation?
Yes, it supports data logging, batch records, and audit trails required in GMP setups.
6: What industries use the Stainless Steel Bioreactor BZLB-515?
It is commonly deployed in vaccines, biosimilars, food-grade fermentation, and contract biomanufacturing.
7: What volume capacities are available in Labzee Stainless Steel Bioreactors?
Labzee Stainless Steel Bioreactors are available in models from 5L to 400000L.
8: What automation and control features are standard?
ll models include Siemens PLC (PLC1200), 10" touchscreen interface, and integrated sensors for pH, DO, temperature and foam. Larger models support full auto-control of agitation and antifoam.
9: Are there optional upgrades for advanced monitoring?
Yes, optional accessories include Remote Control Computer with Software, Auto Gas Inlet System, OD Sensor, Biomass Sensor, CO2 Sensor, ORP Sensor, Glucose Online Analyser, and bypass systems for O2, CO2, and N2.
10: Can these systems be used in GMP environments?
Yes, Labzee Stainless Steel Bioreactors are designed to support GMP-grade operations and are compliant with process validation needs.
11: What industries commonly use stainless steel bioreactors?
These systems are used in biopharmaceutical production, vaccine development, industrial enzyme synthesis and contract manufacturing facilities.
12: Is remote monitoring or SCADA integration possible?
Yes, remote control via PC and full SCADA system integration is available for process automation and data logging.
