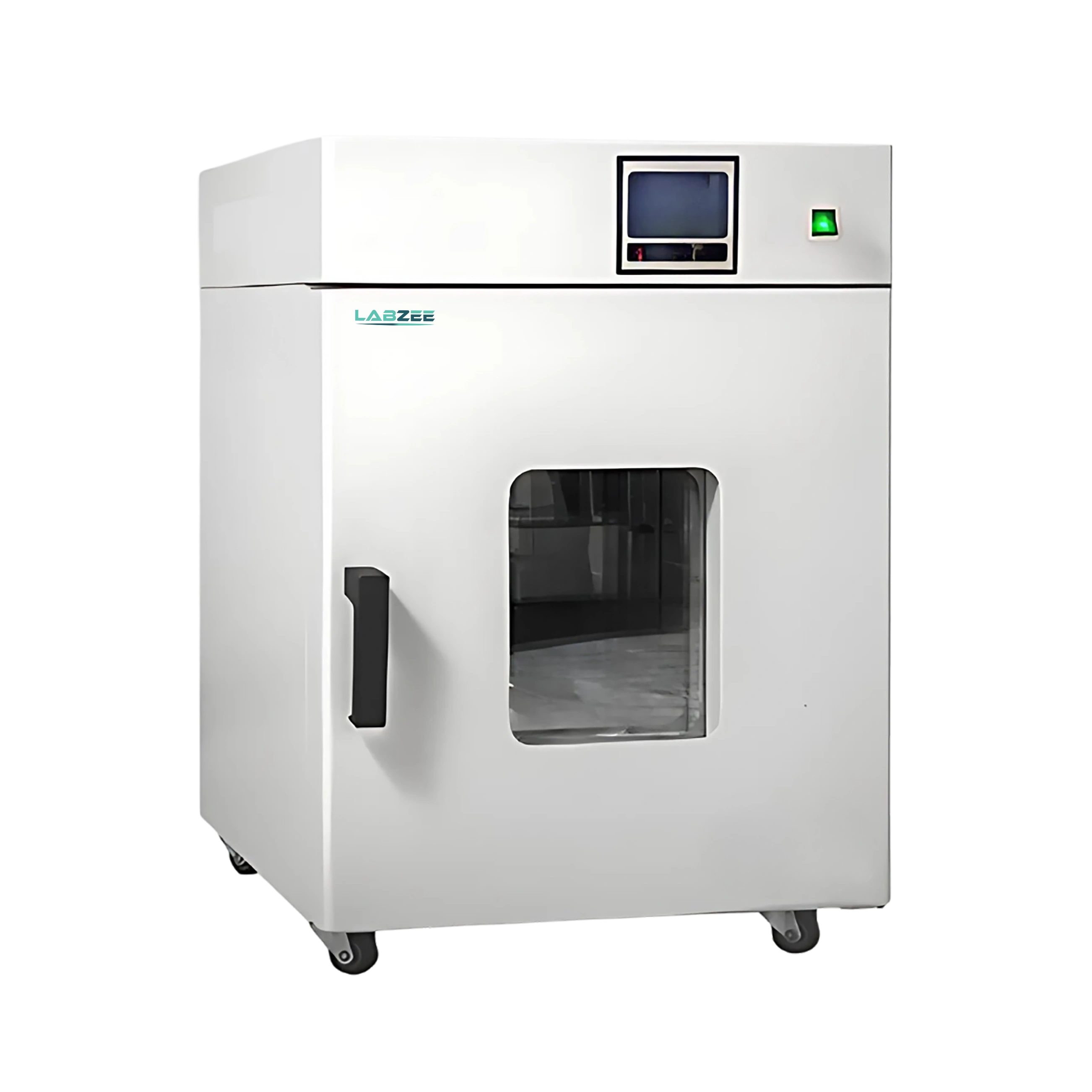

Labzee Floor-Standing Heating Incubator BZIN-501 is a compact, high-performance 18L thermal chamber for precise laboratory heating tasks. It operates in a temperature range of RT+5°C to 66°C, with a fluctuation of ±0.5°C for consistent results. The incubator’s optimized air duct system ensures homogeneous temperature distribution across the chamber. Its large LCD interface provides real-time monitoring of temperature and operational parameters. Our Floor-Standing Heating Incubator BZIN-501 is ideal for small-scale incubation, thermal processing, and controlled heating in scientific and industrial labs.
| Chamber Volume | 18 L |
| Temperature Range | RT+5 to 66℃ |
| Temperature Fluctuation | ±0.5°C |
| Temperature Uniformity | ±1℃ |
| Temperature Resolution | 0.1℃ |
| Power Supply | AC 220V, 50Hz |
| Power Consumption | 200W |
| Chamber Size (W×D×H) | 23×32×25 cm |
| Exterior Size (W×D×H) | 38×42.5×45 cm |
| Package Dimension | 46×45×67 cm |
| Net Weight | 25 Kg |
| Gross Weight | 30 Kg |
2 Grid Racks (Expandable to 3)
Labzee Floor-Standing Heating Incubator BZIN-501 is ideal for controlled heating applications such as biological incubation, chemical processing and thermal analysis across research, industrial, and quality control laboratories.
Frequently Asked Questions
1: How does the air duct design affect temperature uniformity?
Its unique air duct system promotes uniform airflow, minimizing hot or cold spots and ensuring consistent temperature distribution throughout the 18L chamber.
2: What kind of temperature control precision does Floor-Standing Heating Incubator BZIN-501 offer?
The microprocessor controller provides fine temperature resolution of 0.1°C, with a fluctuation of ±0.5°C and uniformity of ±1°C, ideal for precision-dependent procedures.
3: Can the incubator continue functioning if the primary temperature controller fails?
Yes, Floor-Standing Heating Incubator BZIN-501 is equipped with a backup mechanical thermostat, allowing continued operation in the event of a main controller malfunction.
4: Is the unit programmable for multi-step processes?
Yes, Floor-Standing Heating Incubator BZIN-501 supports multi-segment programmable control as an optional feature, suitable for advanced heating protocols or staged thermal applications.
5: How is observation handled without disturbing the internal environment?
A glass viewing window is integrated into the outer door, allowing easy internal observation without needing to open the chamber, preserving thermal stability.
6: What are the available connectivity options for data output?
Optional RS485 interface and a built-in printer can be included for data recording, remote monitoring, or integration into digital lab ecosystems.
7: Can the incubator be sterilized or cleaned easily?
Yes, the stainless-steel chamber includes a removable shelf, and UV sterilization is available as an option, supporting hygienic and contamination-free operation.
8: How does the silicon sealing ring contribute to temperature control?
The high-grade silicon sealing ring ensures an airtight environment, minimizing heat loss and improving thermal stability and energy efficiency.
9: What are floor-standing heating incubators?
Floor-standing heating incubators are laboratory devices designed to maintain precise temperature conditions for incubation, drying, and other temperature-sensitive applications. They offer larger chamber capacities and are ideal for research, clinical, and industrial environments.
10: What are the advantages of floor-standing incubators over benchtop models?
Floor-standing incubators provide higher capacities, improved temperature uniformity, and better airflow circulation. They are suitable for large-scale experiments, high sample loads, and long-duration incubation processes.
11: What temperature range do floor-standing heating incubators support?
Our Floor-Standing Heating Incubators operate from ambient temperature +5°C up to 80°C, with microprocessor-based PID controls for accuracy and stability.
12: How does forced-air circulation improve performance in heating incubators?
The forced-air systems ensure uniform heat distribution throughout the chambers, eliminating hot or cold spots and providing consistent results.
13: What safety features are included in floor-standing heating incubators?
Safety features may include over-temperature protection, leakage protection, heat-resistant handles, mechanical backup thermostats, and durable stainless-steel chambers.
14: What sizes are available for floor-standing heating incubators?
Labzee offers a range of chamber capacities from 18L to 270L, allowing laboratories to choose based on workload and application needs.
15: How should floor-standing heating incubators be maintained and cleaned?
The stainless-steel interiors and removable shelves make cleaning easy. Regular maintenance includes checking airflow vents, ensuring door seals are intact, and calibrating temperature controls as per manufacturer guidelines.
