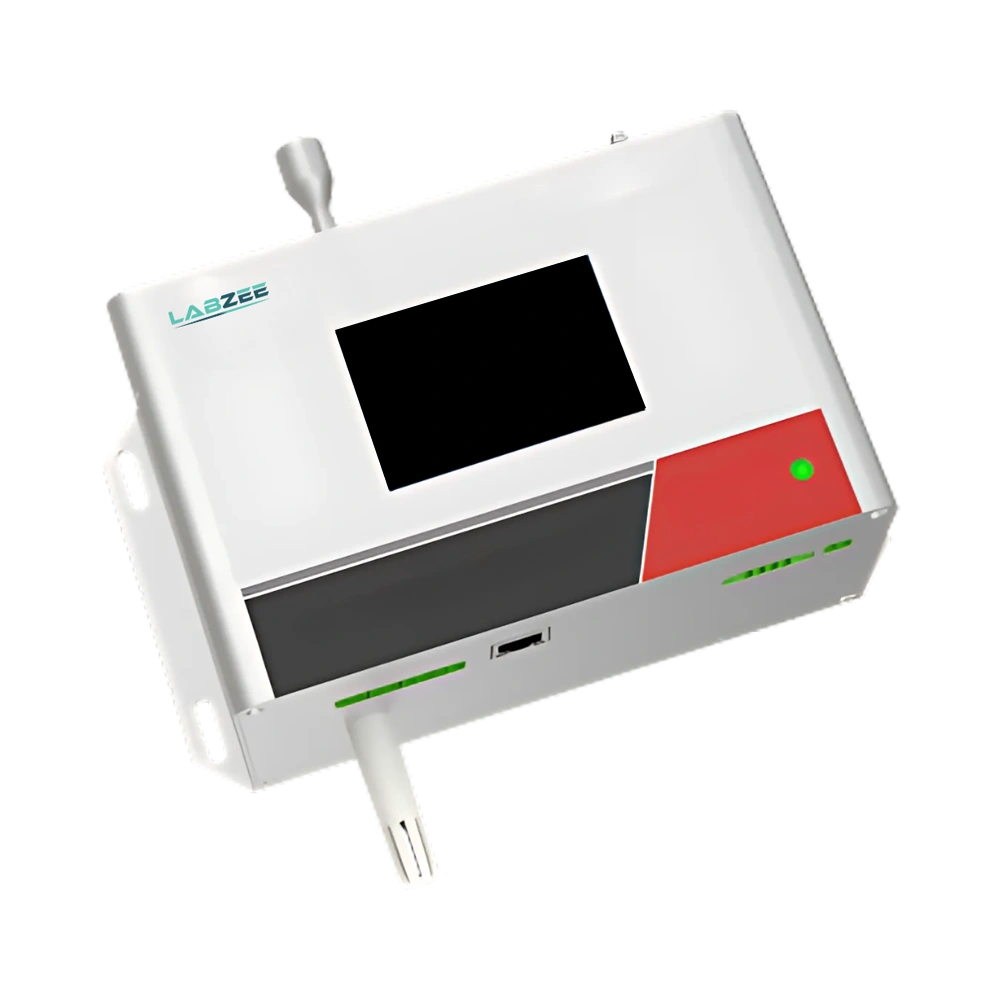

Airborne Particle Counter BZAP-501 offers real-time particle detection in cleanroom and controlled environments. It utilizes optical scattering technology for accurate monitoring of various particle sizes. This device features a built-in blower to ensure stable and consistent air sampling for reliable results. It allows unit switching between different measurement formats for flexible data display. Our Airborne Particle Counter BZAP-501 ensures consistent particle measurement aligned with reference equipment standards.
| Flow Rate | 28.3 L/min |
|---|---|
| Number Of Channels | 5 channels (>0.3μm, >0.5μm, >1.0μm, >5.0μm, >10μm) |
| Counting Efficiency | 50% at 0.3μm |
| Detection Range | 0 to 1,000,000 pcs / 28.3L |
| Power-On Stabilization Time | ≤ 8 s |
| Data Refresh Rate | 1s |
| Working Conditions | 0°C to 45°C; 0 to 95% RH (non-condensing) |
| Storage Conditions | -20 to 60°C, 0 to 95% RH (non-condensing) |
| Temperature Sensor | Accuracy: ± 0.2°C (within 5°C to 60°C) |
| Humidity Sensor | Accuracy: ±2% of reading |
| Operating Voltage | DC 24V ± 15% |
| Average Operating Current | ≤ 3 A |
| Communication Interface | RS485 interface (standard) |
| Lifetime | ≥ 3 years (continuous working) |
| Sampling Head | Isokinetic Sampling Probe |
| External Sampling Tube | Inner diameter: ф 8mm |
| Operating Mode | Adjustable (Default: Work 2min/Sleep 28min) |
| Display | 3.5 inch color screen |
| Product Dimension | 202 × 85 × 124 mm |
| Packaging Dimension | 275 × 175 × 270 mm |
| Net Weight | 2 Kg |
| Gross Weight | 2.5 Kg |
Real-time particle output
Threshold exceedance alarm
ModBus/MQTT communication support
Calibration correction enabled
Stable airflow sampling
The Airborne Particle Counter BZAP-501 supports high-precision air monitoring in power battery production, chip manufacturing, and pharmaceutical processing. Widely used in cleanroom validation, contamination control, and precision machining workflows. Also ideal for controlled environments requiring stable sampling and accurate detection of airborne particles.
